IPC608UW Outstanding Features

• 8MP (3840×2160) resolution @ 20fps, or 4MP (2560*1440) @ 30fps
• Wide angle of view, H.FOV 112.7° and V.FOV 60.1°
• Designed to be used underwater permanently, max. depth of water 50 meters (165ft)
• 304 stainless steel material and anti-corrosion cable for fresh water and salt water
• White LED illumination with remote On/Off control
• H.265/H.264 video compression, dramatically reducing storage and bandwidth
• Intuitive WEB GUI, compatible to Chrome/ Safari/IE/Edge, no plug-in is required
• Support video analysis, like intrusion detection and human body detection
• Suport ROI (Region of Interest) encoding, get more details on important areas
• Compliant to ONVIF, providing API/SDK for 3rd party system integration
• Power supply: DC 12V / POE
• Remote access video from PC WEB client, Client software and Mobile App (free of license)
• Custom cable length, by default 10 meters (33ft)

GO BOX-V Outstanding Features

• Robust enclosure, made of 1.2mm – 1.5mm SECC steel
• Rugged design for outdoor use, with excellent cooling and ventilation design
• Built-in MPPT solar charge controller
• Built-in high capacity lithium batteries (12V50AH, 12V100AH, or 24V50AH)
• Built-in industrial 4G router (optional Ubiquiti CPE)
• Support 50W, 100W, 150W or max 200W solar panels
• Custom output ports (DC12V, DC 24V, POE 48V, POE 24V, RS485 ModBus, etc. )
• Compact dimension for pole mount and wall mount, 30cm(W) x 47cm(H) x 18cm (D) or 11.81” x 18.5 x 7.09”
• Door open sensor to alert on siren and mobile App

SKU: GO BOX-V-IPC608UW

Outstanding Features

Other Features

  • 8MP (3840×2160) resolution @ 20fps, or 4MP (2560*1440) @ 30fps
  • Wide angle of view, H.FOV 112.7° and V.FOV 60.1°
  • Designed to be used underwater permanently, max. depth of water 50 meters (165ft)
  • 304 stainless steel material and anti-corrosion cable for fresh water and salt water
  • White LED illumination with remote On/Off control
  • H.265/H.264 video compression, dramatically reducing storage and bandwidth
  • Intuitive WEB GUI, compatible to Chrome/ Safari/IE/Edge, no plug-in is required
  • Support video analysis, like intrusion detection and human body detection
  • Suport ROI (Region of Interest) encoding, get more details on important areas
  • Compliant to ONVIF, providing API/SDK for 3rd party system integration
  • Power supply: DC 12V / POE
  • Remote access video from PC WEB client, Client software and Mobile App (free of license)
  • Custom cable length, by default 10 meters (33ft)

4K Ultra HD Resolution

Get superior image quality at 3840x2160 Ultra HD resolution, while maintaining efficient bandwidth with the most advanced H.265+ encoding algorithm.

Rugged and Flexible Housing

304 stainless steel housing and bracket with adjustable angle -15° to +30 °. With special waterproof design and anti-corrosion material, the camera is designed for permanent underwater inspection.

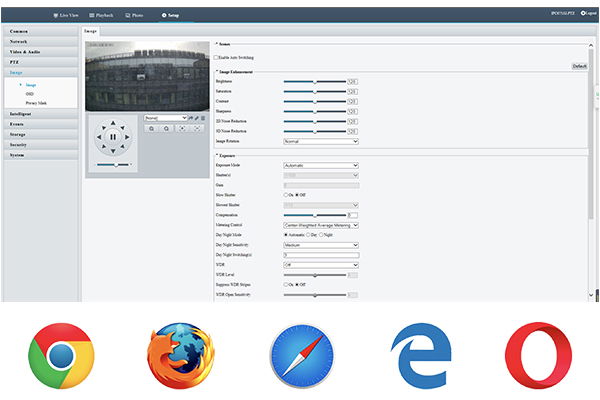

Intuitive WEB GUI

The camera comes with intuitive WEB GUI. And it is compatible to popular web browsers, like Chrome/Safari/IE/Edge, no plug-in or ActiveX is required.

Proprietary Underwater Cable

The camera adopts proprietary underwater anti-corrosion network cable for reliable data and POE power transmission. The cable length can be customized upon request, by default 10 meters (33ft) cable is provided.

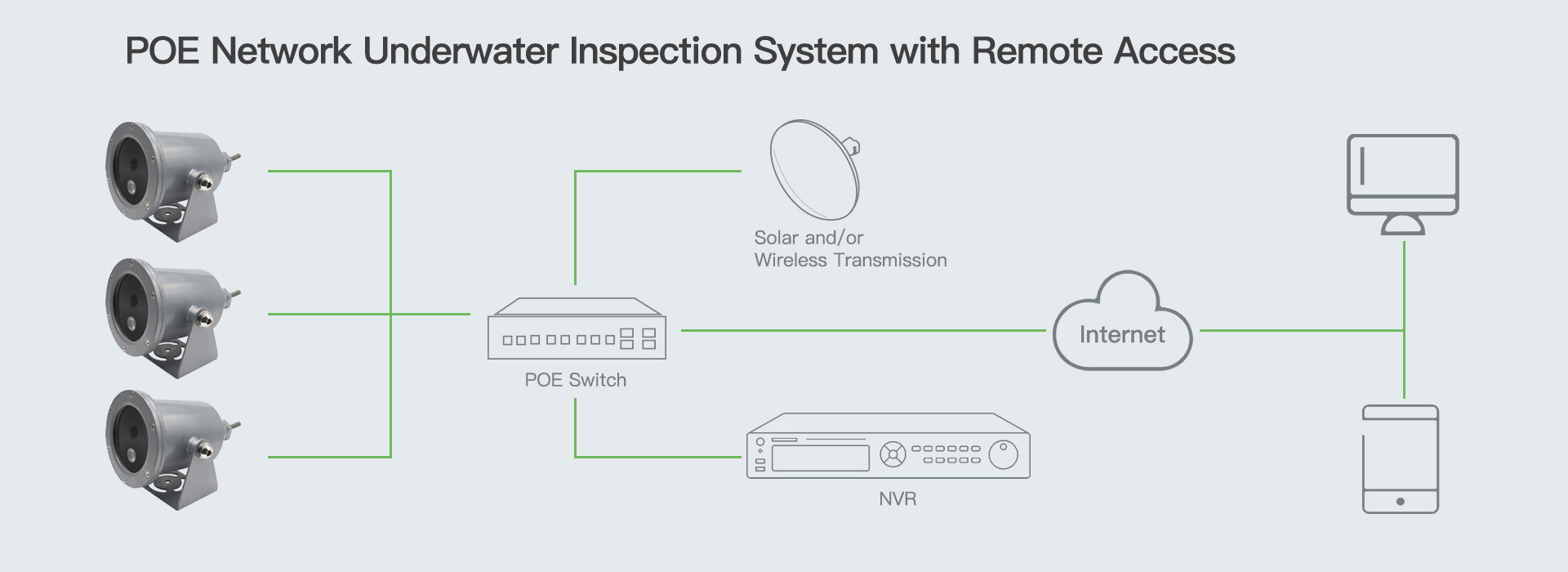

System Diagram

Linovision provides a complete system for multi-sites remote monitoring, for example, NVR for local high capacity storage (up to 80TB), wireless transmission, solar power, VMS software for multi-cameras management, and mobile App with cloud access (free of charge).

Applications

Related Products

4 Port HI POE Switch

  • Support POE power up to 15.4/25.5W for each POE ports. Total budget up to 60W.
  • 4 PoE+ Ports and 2 Ethernet Uplink Ports. Both POE+ port and Uplink port support max 100Mbps transmission speed.
  • Fully IEEE802.3af/at standard compliant.
  • Support 250m POE distance transmission.
  • Plug & Play. No configuration required, ideal for Linovision underwater cameras.

Anti-corrosion cable

  • The underwater cable is water-proof
  • corrosion-resistent
  • anti-aging and anti-stretch
  • specially designed for underwater environments
  • By default 10meters (33ft) underwater cable (longer cable can be customized)
