8ch 4K Solar NVR for Solar Powered Cameras and 4G LTE Wireless Cameras, Max. 20TB Storage

8ch 4K Solar NVR for Solar Powered Cameras and 4G LTE Wireless Cameras, Max. 20TB Storage

49900

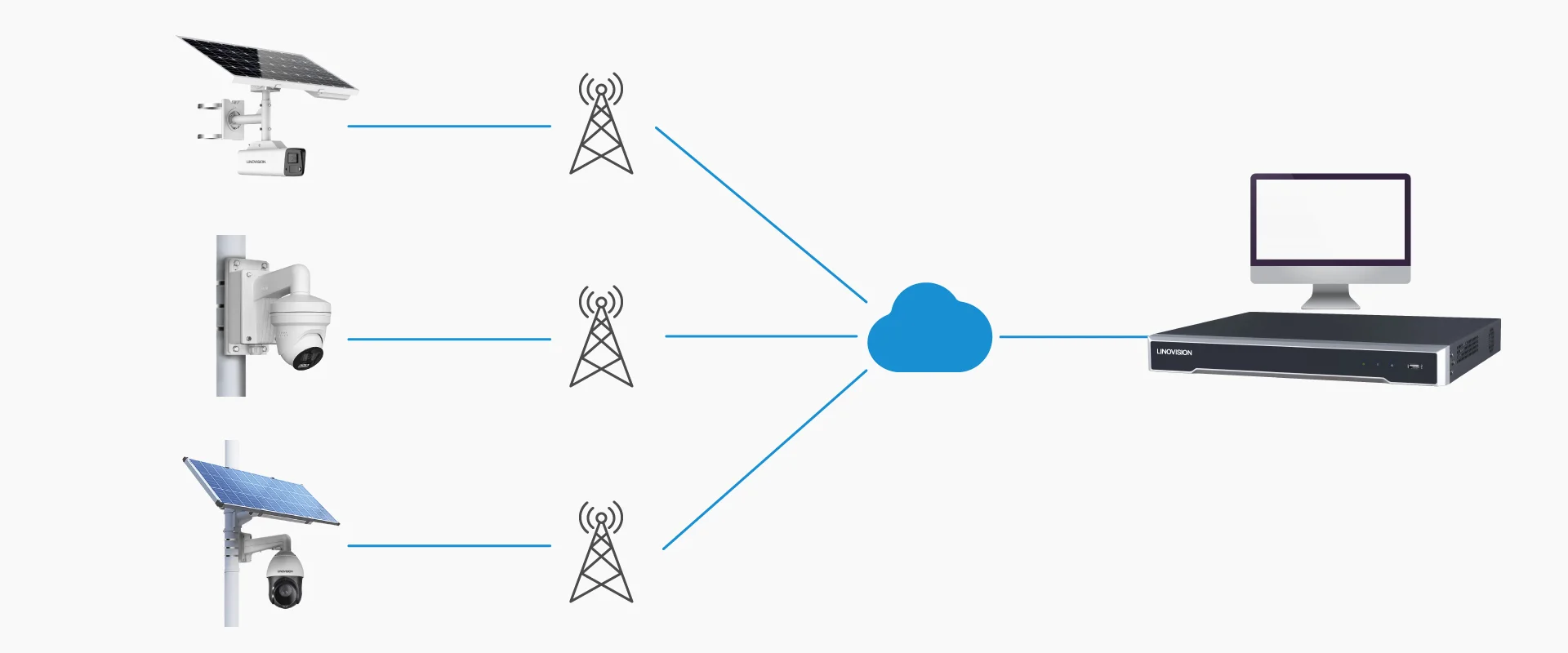

NVR508P8-I2-Solar is a solar NVR that designed for video or image recording from solar powered cameras or 4G cellular wireless cameras. These cameras usually get assigned dynamic IP address which is a problem to be connected in a regular NVR. Solar NVRs solve this issue by proprietary communication protocol to add solar powered cameras regardless the change of IP address. Moreover, Solar NVRs optimize the video transmission in unreliable wireless network and efficiently reduce cellular data usage. In alarm recording mode, Solar NVRs can save about 80% of data usage, which will dramatically reduce cellular data plan cost.

Outstanding Features:
  • Proprietary communication protocol to add solar powered cameras and 4G cellular wireless cameras regardless the change of IP address.
  • Schedule to take snapshots by custom time interval from solar powered cameras.
  • Schedule or manually wake up solar powered cameras in standby mode.
  • More efficiently alarm recording and reduce around 80% data usage.
  • Up to 8 channel IP cameras can be connected
  • Up to 2-ch@12 MP/8-ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • Support 2 HDDs and max 20TB storage
SKU: NVR508P8-I2-Solar
SKU: NVR508P8-I2-Solar
NVR508P8-I2-Solar is a solar NVR that designed for video or image recording from solar powered cameras or 4G cellular wireless cameras. These cameras usually get assigned dynamic IP address which is a problem to be connected in a regular NVR. Solar NVRs solve this issue by proprietary communication protocol to add solar powered cameras regardless the change of IP address. Moreover, Solar NVRs optimize the video transmission in unreliable wireless network and efficiently reduce cellular data usage. In alarm recording mode, Solar NVRs can save about 80% of data usage, which will dramatically reduce cellular data plan cost.
Outstanding Features:
  • Proprietary communication protocol to add solar powered cameras and 4G cellular wireless cameras regardless the change of IP address.
  • Schedule to take snapshots by custom time interval from solar powered cameras.
  • Schedule or manually wake up solar powered cameras in standby mode.
  • More efficiently alarm recording and reduce around 80% data usage.
  • Up to 8 channel IP cameras can be connected
  • Up to 2-ch@12 MP/8-ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • Support 2 HDDs and max 20TB storage
Specification
Video And Audio
IP Video Input: 8-ch Up to 12 MP resolution
Incoming Bandwidth : 80 Mbps
Outgoing Bandwidth : 256 Mbps
HDMI Output : 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output : 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output : N/A (1-ch is optional, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480}
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Video Output Mode : HDMI/VGA independent output

Decoding
Dual-Stream Recording : Support
Decoding Format : H.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability : 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
Synchronous Playback : 8-ch
Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Stream Type : Video, Video & Audio
Audio Compression : G.711ulaw/G.711alaw/G.722/G.726

Network
Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection : 64
Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface : 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power : ≤ 120 W
Standard : IEEE 802.3 af/at

Auxiliary Interface
SATA : 2 SATA interfaces
Capacity : Up to 10 TB capacity for each HDD
Alarm In/Out : 4/1
USB Interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General
Power Supply : 100 to 240 VAC, 50 to 60 Hz
Consumption : ≤ 15 W (without HDD and PoE off)
Working Temperature : -10 to +55º C (+14 to +131º F)
Working Humidity : 10 to 90 %
Dimension (W × D × H) : 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
≤ 3 kg (6.6 lb.)
