8-Port Hardened POE Switch with 1 GE/SFP Uplink, Provide BT 90W POE Po

$99.00 USD

【BT 90W POE OUTPUT】The first two red ports support the IEEE802.3af/at/bt POE++ standards, providing up to 90W POE injector for high-power POE devices, like POE monitor, POE lighting, PTZ camera, etc. The total POE budget is 96W.
【POE WATCHDOG】Realtime monitoring POE load device's status and will automatically reboot POE port when the connected device is not active.
【820FT LONG DISTANCE POE】It supports POE Extend mode for 820ft long distance POE transmission (Bandwidth reduces to 10Mbps per port)
【INDUSTRIAL DESIGN】DIN rail mount.Wide working temperature (–30 °C to +65 °C or -22 °F to +149 °F).6KV surge protection.Suitable for harsh environments such as factory, refinery and traffic light control box.
【WORRY FREE PURCHASE】Enjoy 1 Year Warranty and Lifetime 24hr Global + US Local Tech Support.30 Days Money Back Guarantee.

Datasheet en

SKU: POE-Switch1008DIN

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

Outstanding Product Details

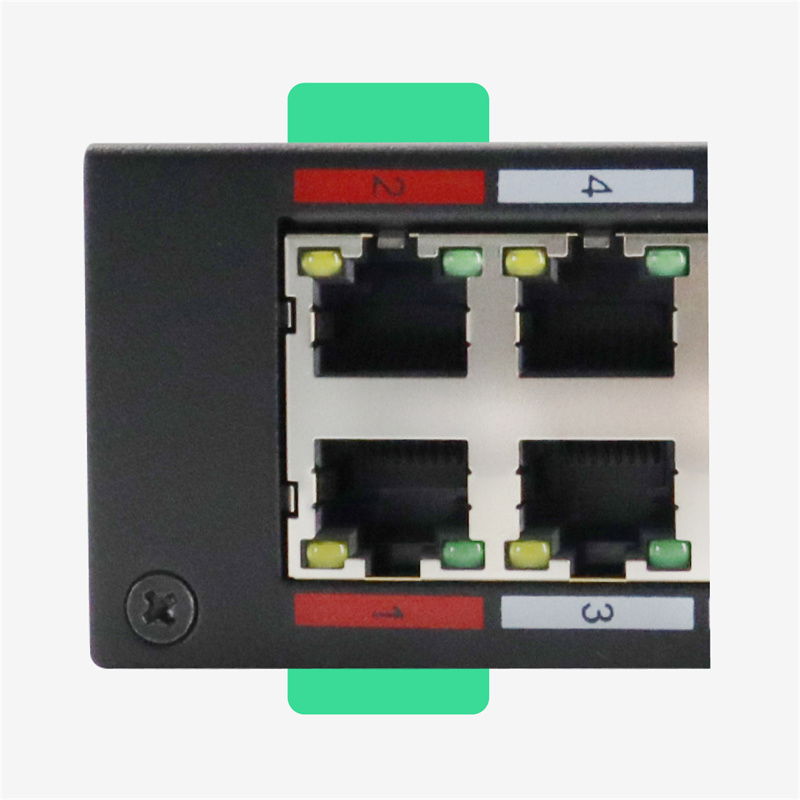

Red Ports Support BT 90W PoE

The first two red ports support the IEEE802.3bt POE++ standards, providing up to 90W PoE injector for high-power PoE devices, like PoE monitor, PoE lighting, PTZ camera, etc.

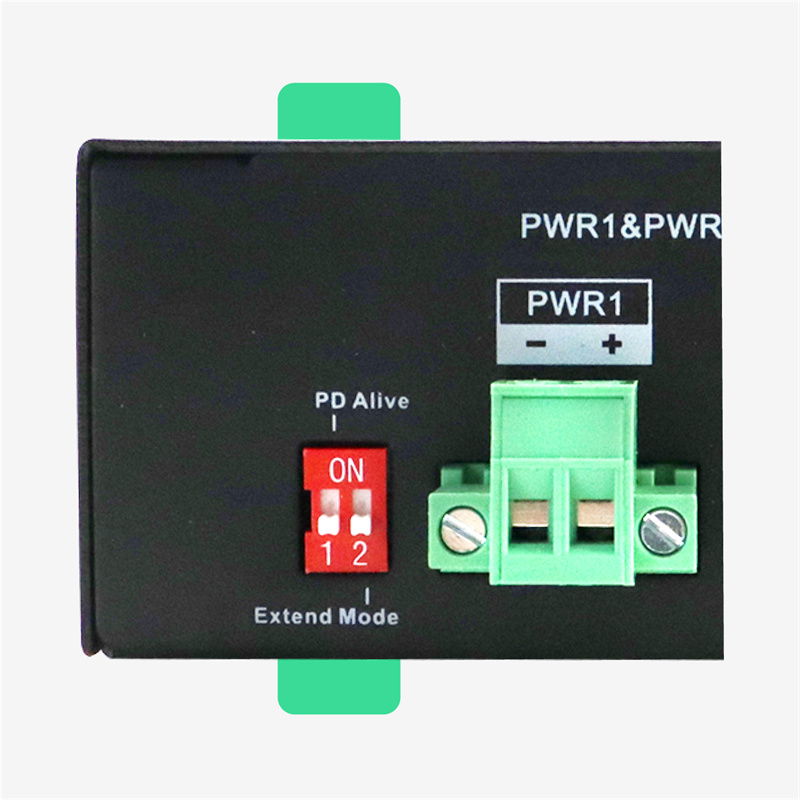

PoE Watchdog and PoE Extend Mode

PD Live (PoE Watchdog) to auto reboot when PD device is freezing (DIP Switch 1)

PoE Extend to enable 820ft PoE transmission (DIP Switch 2)

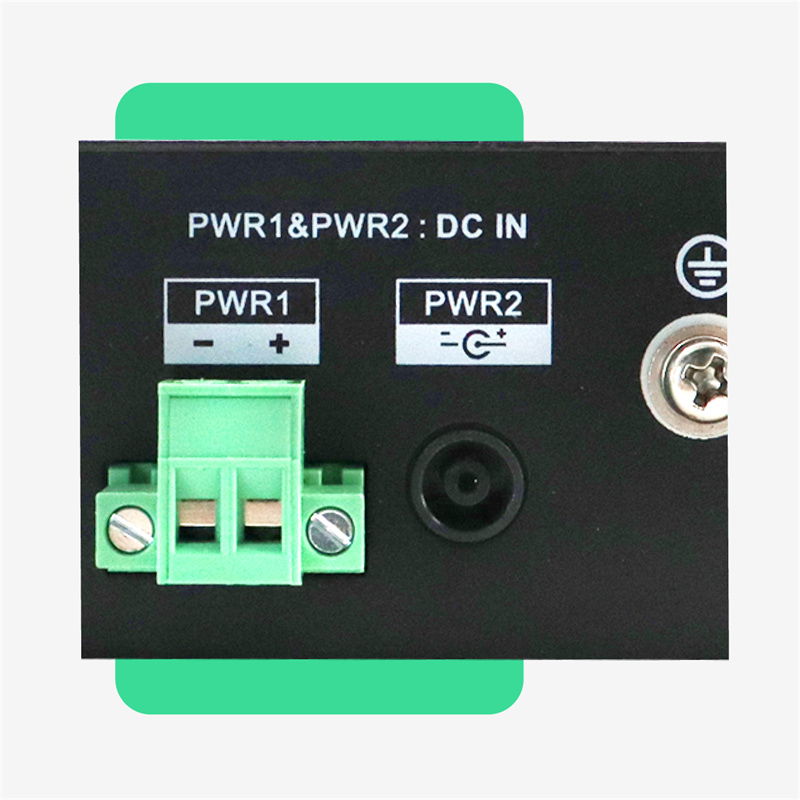

2-CH Redundant Power Supply

Support 2 channels DC48V - 57V Power Input

Excellent PoE Watchdog Function

Functions

Interfaces: 8*10/100Mbps Ethernet PoE Ports (2 * IEEE802.3af/at/bt+6* IEEE802.3af/at) +1 * 1000M SFP +1 * Gigabit uplink

Intelligent PoE: Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports.

BT 90W: The red ports support IEEE802.3af/at/bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port. Suitable for powering high-power devices.

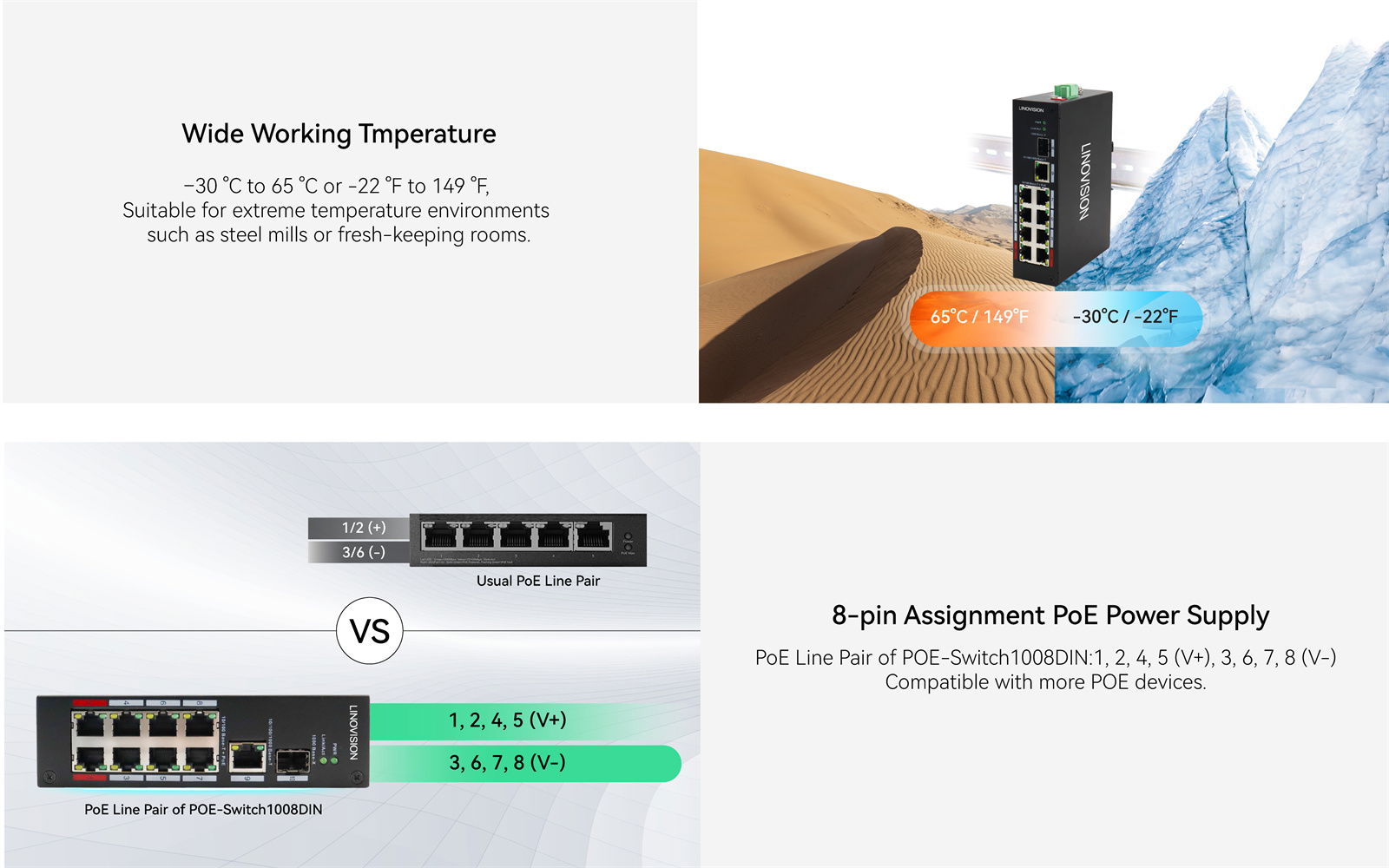

8-pin assignment PoE power supply: Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time.

Long distance PoE: The transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).

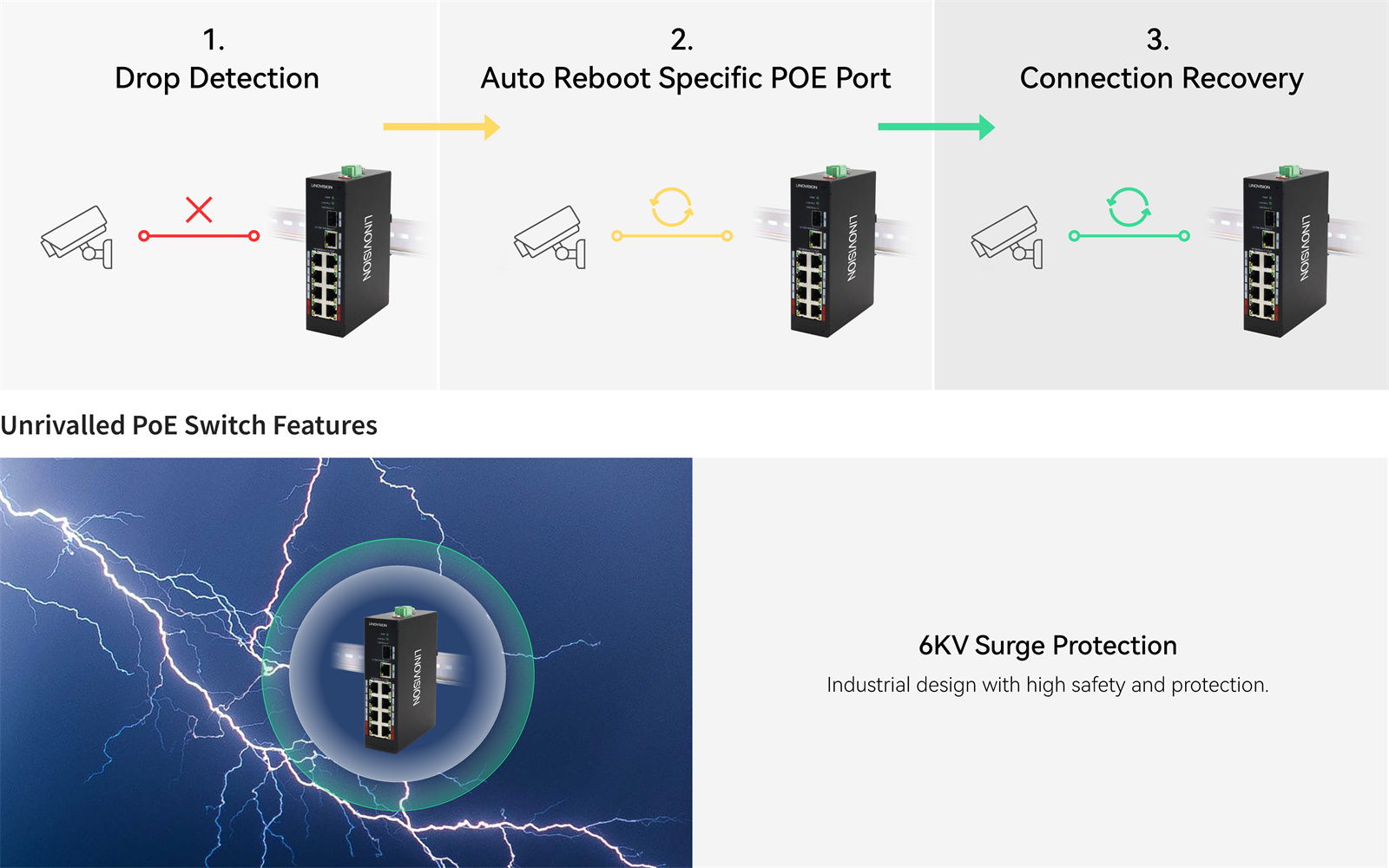

PoE watchdog: It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception.

Wide working temperature:–30 °C to +65 °C (-22 °F to +149 °F)

8-Port Hardened POE Switch with 1 GE/SFP Uplink, Provide BT 90W POE Port, Support POE Watchdog and 820ft long distance POE
