LoRaWAN Gateway Selection Guide

	Learn more >	Learn more >	Learn more >	Learn more >	Learn more >

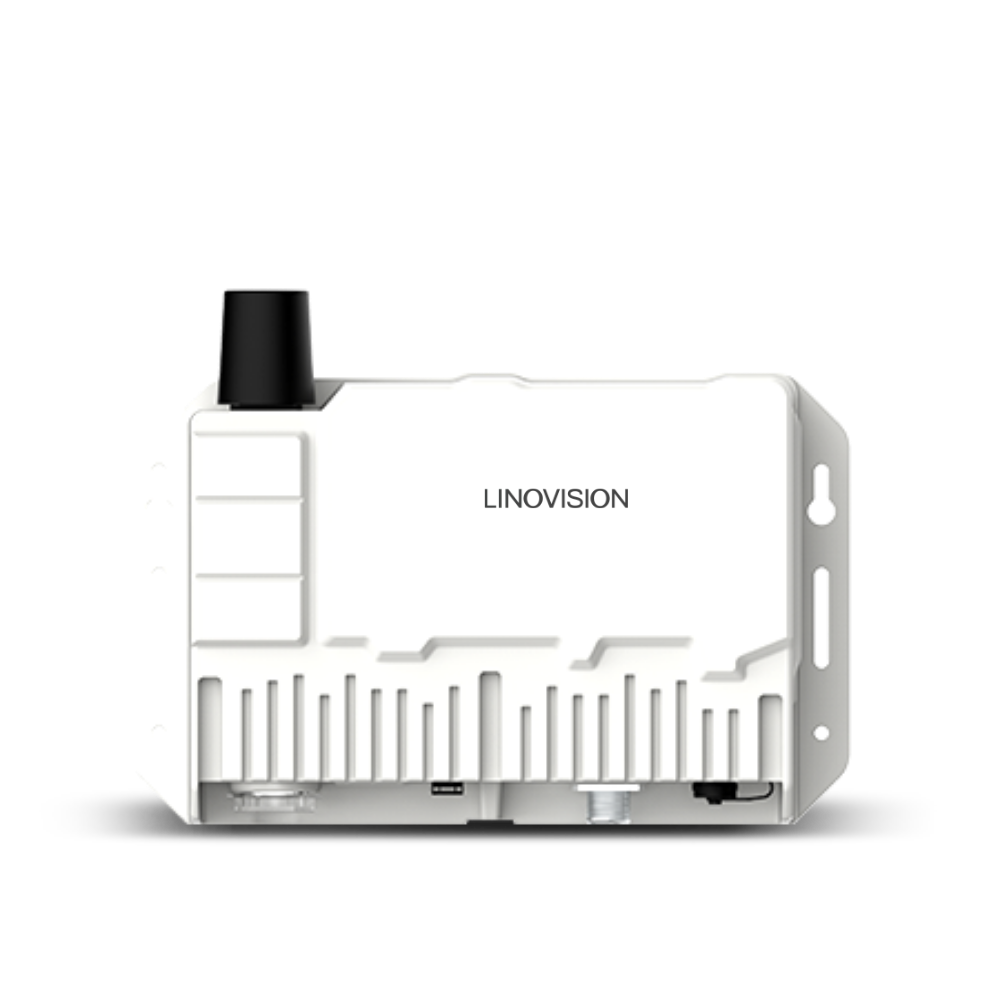

Model	IOT-G63	IOT-G56	IOT-G65	IOT-G67	IOT-GS50
Application	Small-Scale	Industrial	Indoor	Outdoor	Outdoor
Channel	8 (Half-duplex)	8 (Half/Full-duplex)	8 (Half/Full-duplex)	8 (Half/Full-duplex)	8 (Half-duplex)
SIM Slot	1 (Micro SIM-3FF)	1 (Mini SIM-2FF)	1 (Mini SIM-2FF)	1 (Mini SIM-2FF)	1 (Nano SIM-4FF)
GPS	/	/	/	✔	✔
CPU	Dual-core 240MHz, 32-bit Xtensa® LX7	Quad-core 1.3 GHz, 64-bit ARM Cortex-A35	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53	Dual-core 240MHz, 32-bit Xtensa® LX7
Power Input	1. 1 × 802.3af standard PoE input 2. 5V by Type-C Port	1. 1 × 802.3 af PoE Input 2. 5V, 2A by Type-C Port	1. DC Jack Connector for 9-24 VDC power supply 2. 1 × 802.3 af PoE input	1 × 802.3 af PoE input 12 VDC with M12 Connector	1. Solar Power or DC Power (12~24VDC) via M12 Connector 2. 3.6V, 25000mAh Backup Batteries 3. 5V, 2A by Type-C Port
Ingress Protection	IP30	IP30	IP65	IP67	IP67
Operating Temperature	-4℉ to +122℉ (-20°C to +50°C)	-4℉ to +140℉ (-20°C to +60°C)	-40℉ to +158℉ (-40°C to +70°C)	-40℉ to +158℉ (-40°C to +70°C)	-22℉ to +158℉ (-30°C to +70°C)
Dimensions	Ф 115 x 21 mm (Ф 4.52 x 0.83 in)	110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in)	180 x 110 x 56.5 mm (7.09 x 4.33 x 2.22 in)	240 x 164 x 90.9 mm (9.45 x 6.46 x 3.58 in)	250 x 157.5 x 46 mm (9.84 x 6.20 x 1.81 in)
Installation	Desktop, Wall or Ceiling Mounting	Desktop, Wall Mounting	Desktop, Wall or Pole Mounting	Wall or Pole Mounting	Wall or Pole Mounting
