جهاز توجيه خلوي صناعي بتقنية الجيل الخامس مزود ببطاقتي SIM وRS232/485

$699.00 USD
In Stock

معالج كوالكوم رباعي النواة بذاكرة كبيرة.
شبكة عالمية 5G (NSA/SA)/4G LTE مع بطاقتي SIM للنسخ الاحتياطي بين شبكات متعددة.
أداء واي فاي قوي مع 2 × 2 MIMO 802.11 a/b/g/n/ac، بسرعة تصل إلى 1.733 جيجابت في الثانية.
منافذ جيجابت إيثرنت لنقل البيانات بسرعة فائقة.
استعادة تلقائية للفشل/العودة بين الإيثرنت والشبكات الخلوية (بطاقتي SIM) والواي فاي.
يتضمن مراقبًا للأجهزة لاستعادة البيانات تلقائيًا من الأعطال المختلفة، مما يضمن أعلى مستوى من التوافر.
يوفر منفذ RS232، ومنفذ RS485، ومنفذ DI، ومنفذ DO لتكامل إنترنت الأشياء.
اتصال VPN آمن (OpenVPN، وIPsec، وPPTP، وL2TP، وDMVPN، وGRE).
يدعم جهد دخل واسع يتراوح بين 9 و48 فولت تيار مستمر.
تصميم متين مع نطاق واسع لدرجات الحرارة من -40 درجة مئوية إلى +70 درجة مئوية. من -40 إلى +158 درجة فهرنهايت
يدعم الترقية السحابية والإدارة عن بُعد

SKU: IOT-R75W

Datasheet Manual Video

Ship from China warehouse, normally ship out in one business day.

By default Express ship by FedEx or DHL, the typical delivery time is less than one week.

Import customs duty or tax may be charged and at customer's cost.

24/7 US LOCAL + GLOBAL TECH SUPPORT

OFFER CUSTOMIZATION SERVICES

Custom Logo & Branding
Label Customization

GET STARTED

x

Request for Customization

Name

This field is required.

E-Mail

This field is required.

Company

This field is required.

Phone

This field is required.

Quantity

Please enter an integer greater than 0.

Customized Content

This field is required.

Select (Please provide a file if possible, as it will help us better assess and offer you a solution.)

SKU: IOT-R75W

Thank you for inquiring. Our sales team will be in touch with you shortly!

Submission failed. Please try again.

OverView Key Specification Comparison Q&A Resources Reviews

Adopting high-performance industrial platform of quad-core CPU and cellular module, IOT-R75W is capable of providing wire-speed network and ultra-small package to ensure the extremely safe and reliable connection to the wireless network. Upgraded to the latest cellular technology - 5G, the IOT-R75W makes it possible to enjoy ultra-fast broadband access with 5G cellular network. Meanwhile, IOT-R75W also supports 5-port Gigabit Ethernet switch, serial ports (RS232/RS485) and DI/DO(Digital Input/Digital output), which enable you to scale up M2M application combining data and video in limited time and budget. IOT-R75W is particularly suitable for smart grid, digital media installations, industrial automation, telemetry equipment, medical device, digital factory, finance, payment device, environment protection, water conservancy and so on.

Secure ATM

Digital Signage

Smart Vending

Smart Factory

Key Specification

Model	IOT-R75W
CPU	716 MHz, Quad-Core ARM Cortex-A7
Memory	1 GB LDDR4x RAM and 1 GB NAND Flash
Extendable Storage	1 × M.2 NVMe SSD Interface
Ethernet Ports	5 × 10/100/1000 Mbps
Ethernet Ports	1 × RS232 + 1 × RS485
DI/DO	1 × DI + 1 × DO
DI/DO	3 x Cellular Connectors 1 x Cellular/GPS Connector 2 x Wi-Fi Connectors
Maintenance Management	Web, CLI, SMS, Watchdog, On-demand Dial Up
Power Input	1. 9-48 VDC, with Surge-Protection and Reverse Polarity Protection 2. 5V, 3A by Type-C Port
Housing & Weight	Metal, 1.16 lb (525 g)
Dimension	5.31 × 4.65 × 1.77 in (135 × 118 × 45 mm)
Mounting	Desktop, Wall or DIN Rail Mounting
Operating Temperature	-40℉ to +158℉ (-40°C to +70°C) Reduced cellular performance above 60°C
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉
Certifications	RoHS, CE, FCC
Frequency Band	5G NR: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43 WCDMA: B1/B5/B8

Comparison

LINOVISION Cellular Routers Selection Guide

	Learn more >	Learn more >	Learn more >		Learn more >
Model	IOT-R51W	IOT-R32W	IOT-R41	IOT-R75W	IOT-CPE5G
Cellular Network	4G LTE Cat4			5G & 4G LTE Cat16
Max. Link Speed	Up to 150Mbps downlink and 50Mbps uplink			Up to 2500Mbps downlink and 350Mbps uplink
Compatible carriers	AT&T, T-Mobile, Verizon	AT&T, T-Mobile, Verizon	AT&T, T-Mobile	AT&T, T-Mobile	AT&T, T-Mobile
4G LTE Bands (US version)	B1/B2/B3/B4/B5/B7/B8/ B9/B12/B13/B17/B18/ B19/B20/B25/B26/B28/B66	B2/B4/B5/B12/B13/ B14/B66/B71	B2/B4/B5/B12/B13/ B25/B26	B1/B3/B5/B7/B8/ B20/B28/B32	B2/B4/B5/B7/B12/B13 /B14/B17/B25/B26/ B29/B30/B66/B71
SIM Card Slot	One SIM + eSIM	TWO SIM	One SIM	Two SIM	One SIM
Data Plan	vSIM Data Plan, global coverage without roaming	Depends on SIM carriers
WiFi	2.4G WiFi	2.4G WiFI	N/A	Dual Bands WiFi	Dual Bands WiFi 6
Ethernet Ports	One	Two	One	Five	Two
RS485 & MQTT	Yes	Yes	Yes	N/A	N/A
Dimension	3.943.070.87 in	4.253.541.02 in	2.762.170.87 in	5.314.651.77 in	4.134.338.58 in
Main Applications	Connectivity for security cameras,sensors and IoT devices; High speed internet on the go; Global data access	Connectivity for security cameras,sensors and IoT devices; High speed internet on the go; Internet failover	Connectivity for security cameras,sensors and IoT devices; Low power consumption	High speed internet on the go; Internet failover	High speed internet on the go; Internet failover; WiFi CPE

Q&A

Q. is the SSH protocal supported?

A.

Yes, Linovision 5G router supports SSH protocol.

Q.What version of the Qualcomm Quad-Core processor does it comes with?

A.

The processor it configures is IPQ4019 high-energy chip solution

Q.Does this unit provide load balancing?

A.

This unit doesn't support load balancing.

Q.This 5g/4g router comes with cat20 ? How much？

A.

Our 5g router is equipped with cat16(Up to 1Gbps downlink and 200Mbps uplink), and cat20 is not available for the time being.

Q.What operating system is available via the CLI?

A.

The configuration of this 5G router through the CLI is not limited by the computer operating system.

Q.Does this model support both mmwave and sub-6ghz 5g networks?

A.

The 5G LTE Router supports sub-6ghz 5g networks, but not mmwave.

Q.Which U.S. carriers is this compatible with?

A.

Our router is compatible with AT&T and T-mobile. Supports Global Frequency Band: N1/N2/N3/N5/N7/N8/N12/N20/N28/N41/N66/N71/N77/N78/N79; B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/B25/B26/B28/B29/B30/B32/B66/B71 @LTE FDD; B34/B38/39/B40/B41/B42/B48@LTE TDD

Q.Does the iot-r75w support carrier aggregation?

A.

No, this router does not support carrier aggregation.

Q.1.)can the device be bridge? 2.) how can i power the device? 3.) what type of antennas are compatible with the device?

A.

1).If Bridge is WIFI bridge, our product does not support this function now. 2).Our products have their own power adapters, which can be powered by directly connecting to the power supply. 3).Our products will also have their own antennas, so there is no need to match other types of antennas.

Easy to get up and running, decent documentation and good support

The R75W is easy to configure and I received good customer support. I did struggle to get my T-Mobile 5G home internet SIM to work. T-Mobile evidently associates their Sim to their crappy Nokia Gateway when it is registered so that it cannot be used on a high performance 5G modem/router. I am still trying to get my home internet SIM to work with the R75W, but that is a T-Mobile issue. I have gotten no good response from T-Mobile support as to why they limit customers to using their crappy hardware. When I used my phone SIM the R75W connected to the T-Mobile 5G network correctly.

Excellent 5G GSM modem as backup internet option

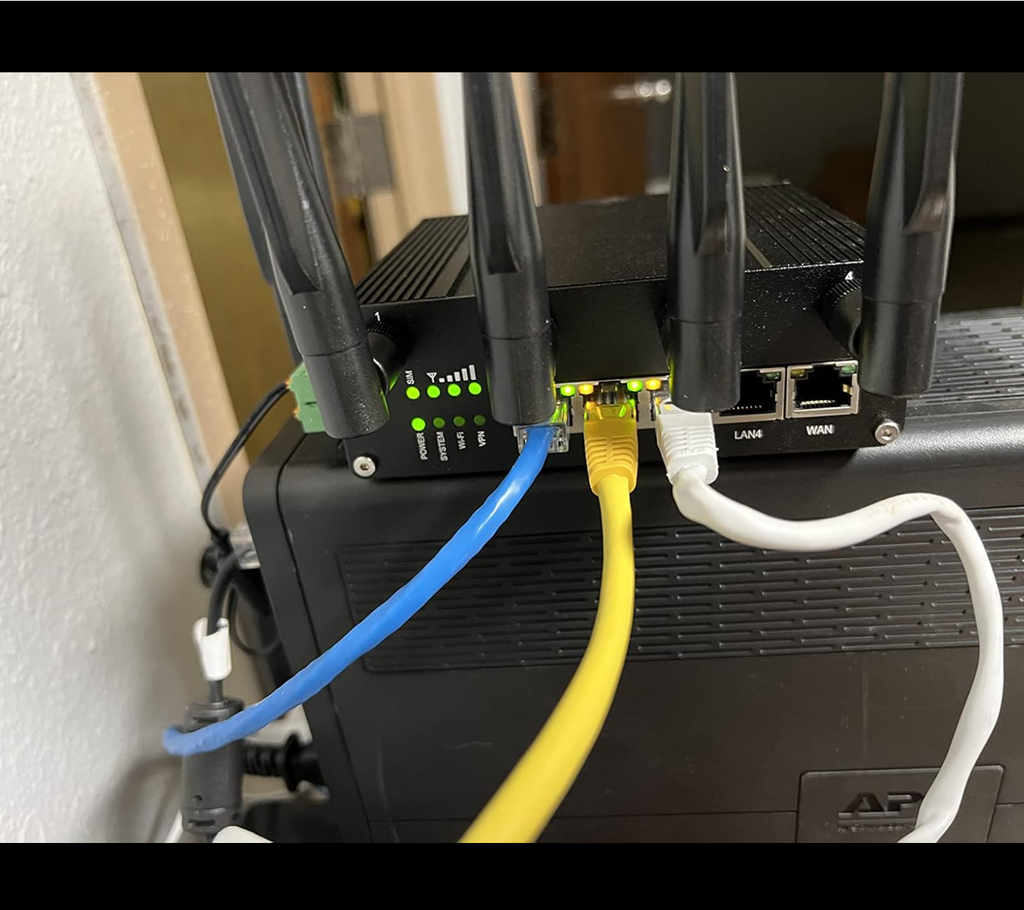

It’s very easy to install and use, it has its own DHCP, internal VPN settings, 2 SIM cards (I’m using with 1 ATT), has many settings to change, has WiFi. Real industrial monster. I have my own dhcp server but this modem now running as permanent service while ATT making fiber connection, and it’s running with 170 machines, DVR with 16 camera, Remote Desktop on server and off course server 24/7. Using it for few weeks, everything is good.

I bought this for WAN failover... getting it to work

I bought this to give me fail-over internet connection if my WAN connection fails. It has been quite an effort to get this to work. I have TWO SIMS for ATT and T-Mobile. The documentation for configuration is very light. Yes, it has a manual, but it basically just includes pictures of all of the settings but no instruction on how to set the settings. HERE is what I figured out: 1) The only services I could get to work in USA are ATT and T-Mobile, 2) I had to get SIM cards from both service providers configured for phones and not for hotspots. At first I had T-Mobile hotspot SIM, and it would not work. I had to spend several hours on the phone with T-Mobiel to find someone that could get make the SIM work with this unit. 3) It does not appear that this unit has 2 modems ?? I think it just has 2 SIM card slots. In other words, I have not figured out how to have it fail-over from one SIM to the other. Yes, I can manually reboot the unit with SIM 1 or SIM2 having priority, but then I can't seem to switch after it's booted. Thus, I do get fail-over from WAN to either SIM 1 or SIM 2, but I can't seem to fail-over between the SIMS (I sent a tech support question on this). It also has the ability to log into a WIFI network and include that as a fail-over connection, however, I have not been able to get it to log in.

UPDATE: Been using the unit for month - it works!! Yes, it only has one modem so you basically have to decide if you wanna run SIM 1 or SIM 2. I DO have both ATT and T-Mobile cards and for my application I see which has the best service for my location - usually it's T-Mobile - and stay on that SIM. I did not really feel the fail-over worked well (fast enough), so instead of using a fail-over in this unit, I use a fail-over in my main router and this modem is the fail over - which means I sometimes lose internet and have immediate fail-over without losing service - which is important for streaming live video. The antennas this comes with don't do much. I added 3 external antennas - daily expensive ones, which I think are worth every penny. I did quote a bit of testing and found that adding more antennas just made it works better and better. 2 work better that 1 and 3 with better than 2. Using multiple antennas is often the difference between getting 2-5MBPS with included antennas vs. 15-30MBPS with quality antennas... sometimes much more.
