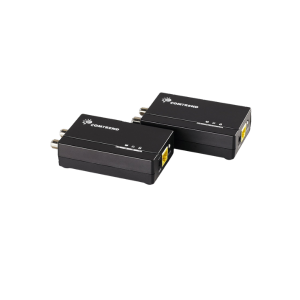

Linovision EOC-Converter is a combination of Power over Coax (PoC) and Ethernet over Coax (EOC) converter. With proprietary ePOE technology, it is designed to transmit both PoE power and ethernet data over coaxial cables or twisted pair cables, including siamese cable, CATV cable, power cable, Cat5E/Cat6, etc. The max transmission distance can be 3,300ft. It is super useful to upgrade the analog camera system to an IP surveillance system without replacing legacy coaxial cables. It can also be used in elevators to get power and network from coax or twisted pair cables.
There are some situations in that users need to transmit PoE power and data over ultra-long distances, for example, power a remote security camera from 500 meters (or 1,640ft) away (from one building to another building), or supply power to a PoE IoT device from one side to another side of an underwater tube. The regular PoE extender will extend 100 meters only. Linovision innovative EOC solution, it makes possible to transmit PoE power and data over max. 1,000 meters (or 3,300ft) through regular Cat5e or Cat6 cable, this will reduce thousands of dollars in cabling cost.
There are some locations that are without network cables but still need POE power and data transmission, for example, elevator carts in many buildings, or doorbell cables, LINOVISION EOC converters are perfect for this application. It can transmit POE power and IP data over coax RG59 cable, twisted pair cable, doorbell cable, telephone cable, or even power cables. The remote-connected device can be IP cameras, IP Video intercoms, IP phones, IP controllers, etc.
The 2023 version EOC converter supports POE IP data transmission over twist pair cables, such as Cat5E/Cat6 cable, power line, RS485 cable, etc. BNC to Twist pair connectors are required in this connection. This function is widely used in elevator applications.
1. Upgrade traditional analogue system to IP surveillance system while using existing coaxial cable(RG59 cable)
2. Power + Data transmission to POE VoIP Phone over coax / twist pair cables
3. Power + Data bi-direction transmission to POE Wi-Fi AP (48V POE device only)
4. Ethernet data extender up to 1,000 meters (3,300 ft) over coax cable or twist pair cables (Bandwidth will be lowered to 10Mbps over 300 meters)
5. POE power + Data transmission over twist pair cables (connector is included in package)
6. POE power + Data transmission for non-POE DC12V Devices
7. For many elevators there are no ethernet cables and no camera powers in the elevator cart, LINOVISION EOC converters are perfect for this application. It can transmit POE power and IP data over coaxial or twist pair cables. One passive EOC-transmitter will be put inside the elevator cart to feed the camera or signal board, and one EOC-receiver will be in the control room, powered by POE switch/POE injector/POE NVR. For multiple elevators application, one EOC-Switch04 or EOC-Switch24 will be put in the control room, working together with max 8 elevators.
Use good quality IEEE802.3at 30W PoE switch to provide POE power to our EOC-Receiver, preferred with the DC53V input voltage, instead of regular 48V input voltage. Please also check the PoE budget of the PoE Switch, and make sure that the port individually can output 30W PoE power. (Most PoE Switches in the market do not support all ports at 30W POE output). Use point-to-point direct coaxial cable. The cable and connector quality will heavily affect the transmission distance. Please make sure to connect EOC-Receiver to the POE switch, and then connect the PoE cameras to the EOC-Transmitter side. The PoE output from the EOC-Transmitter is PoE mode A (use Pin 1,2,3, 6 for both data and power). If your PoE device is PoE mode B, please use our POE-Splitter or PoE-Extender02. The PoE output is standard IEEE802.3af/at PoE, and not compatible with 24V passive PoE devices.
Linovision EOC-Converter’s advantages over other products in the market.
Linovision EOC-Converter VS Motorola MoCA Adapter or StarTech EOC1110K
Linovision EOC-Converter can transmit both PoE power and ethernet data, while MoCA adapter does not support.
Linovision EOC-Converter VS Axis T8640 or Veracity Highwire Powerstar or DUALCOMM DECA-200
Quite similar, but Linovision EOC-Converter can transmit PoE and data up to 3,300ft distance, while others is 1,000ft.
Linovision EOC-Converter VS Altronix eBridge1PCRMT
Quite similar, but Linovision EOC-Converter can transmit PoE and data up to 3,300ft distance, while Altronix eBridge is 1,640ft.
Linovision EOC-Converter VS Enconn Mini-Power
Quite similar, but Linovision EOC-Converter can transmit PoE and data up to 3,300ft distance, while Enconn is only 800ft.
|Function Port||1*10/100 Mbps Base-TX 1*BNC|
|Transmission Bandwidth||RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps|
|PoE Protocol (EOC-Receiver)||work as a PoE Powered device, compliant to IEEE802.3af/at.
Auto adaptive to PoE mode A and B from PSU (PoE Switch or PoE NVR, strongly recommend to use 30W PoE+ port)
|PoE Protocol (EOC-Transmitter)||work as a PSU, provide PoE power to standard IEEE802.3af/at PoE device (48V Passive PoE, Pairs 1, 2+; 3, 6 Return)|
|Network Standard||IEEE802.3, IEEE802.3u, IEEE802.3x|
|Lightning Protection|| Common Mode 4KV
Differential Mode 2KV
|Operating Temperature||–30°C to 65°C (–22°F to 149 °F )|
|Dimension (each) WxDxH||79mm×52mmx23mm (3.1" x 2.0" x 0.9")|
|Weight (each)||61g (0.134lbs)|
It can transmitter ethernet data and POE power over coaxial cables, twist pair cables, power cables, video cables or almost any two-pin cables.
Yes, one pair of EOC converter can be used to transmit multiple device over single coaxial cable with NVR/POE switch/WI-FI AP. The connection will be multiple device -> NVR/POE switch/WI-FI AP -> EOC Transmitter -> Coaxial cable ->EOC Receiver -> POE NVR/POE Switch/POE Injector with internet. Please note that the EOC receiver has to be connected to an POE NVR or POE Switch to be powered.
Yes. But you need a POE injector in EOC receiver side to provide power to EOC receiver and EOC transmitter. It is recommended to use 56V 30W POE injector.
The maximum load capacity is 21W in 300ft transmission which is sufficient to power a regular IP PTZ camera. The load capacity can be at least 11W in 1000ft transmission which is sufficient to power most of IP cameras.
The maximum transmission distance is 3000ft. Please note that the load capacity will drop down to 4W with general DC48V injector, so it’s recommended to use 60W or 75W poe injector in the receiver side.
It can work with POE devices like IP cameras, POE Wi-Fi AP, VoIP phones, etc. And it can also work with non-POE device like PC/NVR, etc. And you still need a power injector to power the EOC receiver side even though don’t need poe.
It supports IEEE802.3af and IEEE802.3at standard. It can work with most of the IP cameras and mini PTZs in the market, we also have customers use this to power POE WIFI AP and it is working well.
It supports DIN Rail installation(Standard 35mm din rail), or you can put it inside a regular camera’s junction box, since it is very small in dimension, that is 3.1” x 2.0” x 0.9”
Several main reasons are as follow: 1. EOC transmitter has to be connected to POE device (IPC/VoIP), and EOC receiver is connected to POE supply device (POE NVR, POESwitch or POE Injector). The reverse connection will not work. 2. It is used for point-to-point coax cable direct connection only, no BNC repeater/T-connect/splitter in the middle. 3. It may be caused by insufficient load capacity. The maximum load capacity is 21W in 300ft transmission which is sufficient to power a regular IP PTZ camera. The load capacity can be at least 11W in 1000ft transmission which is sufficient to power most of IP cameras or VoIP phones. 4. No power supply will also make it fail to work. Please be informed that EOC receiver has to be connected to an POE NVR, POE Switch or POE Injector to be powered.
