전압 부스터가 있는 5포트 DC9-54V 입력 풀 기가비트 POE 스위치

3D Model

x

전압 부스터가 있는 5포트 DC9-54V 입력 풀 기가비트 POE 스위치

$79.00 USD
In Stock

DC9V-54V POE 스위치 - 내장 전압 부스터로 DC9V-54V 입력 및 표준 IEEE802.3af/at POE 출력을 지원합니다.
5포트 풀 기가비트 POE 스위치 - 4개의 IEEE802.3af/at 30W POE 포트와 1개의 기가비트 업링크 제공; 모든 포트 10/100/1000Mbps 자체 적응형 풀 듀플렉스; 총 POE 예산 120W(DC24V/DC48V 입력) 또는 60W(DC12V 입력).
산업 디자인 - 소형 IP40 견고한 금속 인클로저; 넓은 작동 온도 -40°C ~ 80°C; DIN 레일 및 벽면 장착 지원
듀얼 전원 입력으로 중단 없는 POE 공급 - 2채널 DC9V-54V 중복 전원 입력 및 자동 장애 조치를 지원하여 높은 신뢰성의 네트워킹 시스템을 보장합니다. 모드 B POE 출력과만 호환됩니다.

응용 분야
태양광 발전 시스템(DC12V/DC18V/DC36V 입력)에서 표준 POE 공급 제공
POE 포트가 필요한 RV/차량/트럭/버스 시스템(DC12V 입력)
표준 POE 출력이 필요한 UPS 시스템(DC24V 입력)에 적합

SKU: POE-Switch0504GD

Datasheet Manual Video

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

Frequently bought with

전압 부스터가 있는 5포트 DC9-54V 입력 풀 기가비트 POE 스위치

$79.00 USD

-

+

DC12V/DC24V/POE 24V 출력이 있는 산업용 기가비트 POE+ 스플리터

$29.99 USD

-

+

2개 포트 DC12V 출력이 있는 100Mbps 이더넷으로의 30W PoE 스플리터(2팩)

$13.99 USD

-

+

POE 스플리터-USB-C 전원 및 이더넷 데이터(2팩)

$14.99 USD

-

+

The bundle

This Item

x1

+

This item

전압 부스터가 있는 5포트 DC9-54V 입력 풀 기가비트 POE 스위치

$79.00 USD

-

+

Frequently bought with

DC12V/DC24V/POE 24V 출력이 있는 산업용 기가비트 POE+ 스플리터

$29.99 USD

-

+

2개 포트 DC12V 출력이 있는 100Mbps 이더넷으로의 30W PoE 스플리터(2팩)

$13.99 USD

-

+

POE 스플리터-USB-C 전원 및 이더넷 데이터(2팩)

$14.99 USD

-

+

OverView Key Specification Comparison Q&A Resources Reviews

LINOVISION Industrial 5 Ports Gigabit Solar POE Switch with DC9V to DC54V Voltage Booster

Supports 4 x IEEE802.3af/at 30W POE Ports @120W, Compact POE Power Supply for Solar Power/RV Truck/VoIP Systems.

Outstanding Features

Full Gigabit PoE Switch

4 IEEE802.3af/at 30W POE ports and 1 Gigabit uplink
All ports 10/100/1000Mbps self-adaptive full duplex
Total POE budget 120W (DC24V/48V) or 60W (DC12V)

PD Detection

PoE port supports PoE automatic detection
When connecting to a non-POE device, provide data transmission only, will not output power to prevent damage

Mini POE Switch

Compact design, DIN rail or Wa mounting easily fit into small cabinets or machines
Dimension (95 x 70x 29mm)

Redundant Power

Support 2 channel DC9V-48V redundant power inputs and auto failover, ensure high reliability networking system

Wide Voltage InputSupport

wide voltage input range (DC9-48V)
Up to 30W per POE port, and total
120W POE budget ( DC24V / DC48V input ), or 60W ( DC12V input )

Industrial Design

Fanless design and wide working temperature (-40℃ ~ 80℃ or -40 ℉ ~176 ℉)
6KV surge protection

Interface

Application

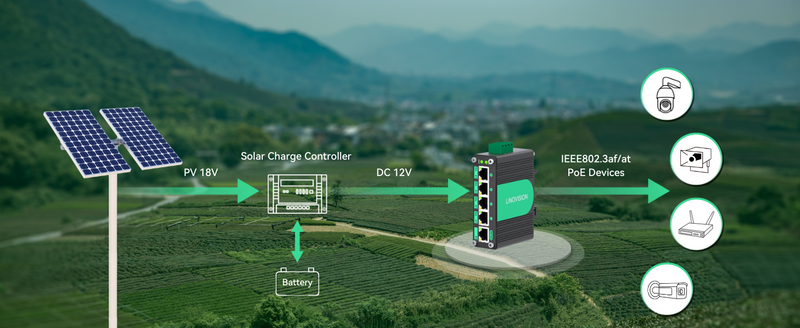

Application1 – Solar Power Systems

Input DC 12V and output IEEE802.3af/at 30W POE

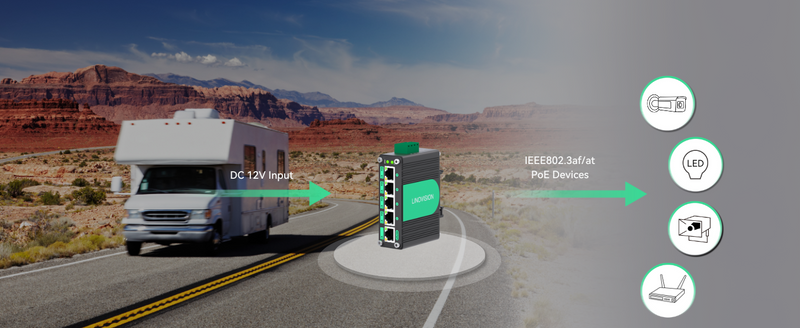

Application2 – Vehicle POE Supply

Input DC12V and output IEEE802.3af/at 30W POE

Application3 – DC24V input

Input DC24V and output IEEE802.3af/at 30W POE, popular in IP intercom, access control and wirelesss transmission systems

Application4 – Harsh Environment

Robust data communication and POE transmission in hardened environments

Installation

Key Specification

Model	POE-Switch0504GD
Technical Specification
Standards	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3af/at
Forward & Filtering Rate	1,488,000pps (1000Mbps)
Packet Buffer	1Mbits
Packet Length	10Kbytes
MAC Address Table	8K
Switch Fabric	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps
Connector	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Mode	Mode B
PoE Line Pair	4/5(+)，7/8(-)
Operating Temperature	-40°F to 176°F (-40°C to 80°C)
Relative Humidity	5% to 95% non-condensing
MTBF	> 200,000 hrs
Input Power	9~54V DC (Terminal Block)
Power Consumption	<6W (PoE In Use: <125W)
Power Input Overload	Automatic Resettable
Reverse Polarity	Present
Dimensions (WxDxH)	3.74"x2.75"x1.14" (95 x 70x 29mm)
Weight	0.551lb (250g)
Casing	Aluminum Case
Mounting Options	DIN-Rail / Wall-mount

Comparison

LINOVISION DC12V POE Switch Selection Guide

		Learn more >	Learn more >
Model	POE-Switch0504GD	POE-Switch1008-Solar	POE-SW708GM-DC12V
Input	Dual DC Input: 12V~48V DC	Dual DC Input: 12V~48V DC	Dual DC Input: 12V~57V DC
Output	48V POE Standard	48V POE Standard	48V POE; 12/24V DC Output
Uplink Ports	1 Gigabit Ethernet Uplink	2 Gigabit SFP	2 Gigabit SFP
POE Ports	4 Gigabit PoE Ports	8 Gigabit PoE Ports	8 Gigabit PoE Ports
POE++ Ports	/	/	1 * BT 90W Port
POE budget	120W (DC24V/48V), 60W (DC12V)	240W (DC48V), 120W (DC24V )	240W (DC48V), 120W (DC24V )
L2/L3 Management	/	/	VLAN, QoS, SNMP, Fast-Ring
PoE Port Control	/	/	Turn On/Off PoE
Installation Method	DIN-Rail/Wall-Mount	DIN-Rail/Wall-Mount	DIN-Rail/Wall-Mount
Waterproof	✘	✘	✘

Q&A

Q.What is the unique feature of this Solar POE Switch?

A.

Compared to a regular industrial PoE switch, this solar PoE switch has a built-in DC12V to DC48V voltage booster so it can be powered by any power source between DC12V and DC48V, for example, DC12V from solar power system, DC12V from vehicle battery, DC24V from commercial buildings, etc.

Q.What kind of PoE devcies it can work with?

A.

It provides PoE power to all of the standard IEEE802.3af/at PoE devices, like IP security cameras, VoIP phones, PoE wireless AP, etc.

Q.Does it come with a Power adapter?

A.

No power adapter is included. You can use it with a regular DC12V or DC24V power adapter, or industrial DC12V power supply unit.

Q.Can it work in a harsh environment?

A.

Yes, sure, that is what this PoE device designed for.

Q.How does the redundant power input work?

A.

This PoE switch can be powered by two channels of DC power inputs. If there is one power input fails, another power input will ensure non-stop operation of this PoE switch.

Q.What is the draw current when connecting to DC 12V power?

A.

If the PoE switch is not connected to a device, the current is 0.5A. If devices are connected, the maximum current depends on the power consumption of the connected devices, with a maximum of 5.5A.

Q.What is the line pair of the switch?

A.

nsert positive 1 and 2, and negative 3 and 6.

Q.Does it work with non-PoE devices?

A.

Yes, sure. Each PoE port supports PoE automatic detection. When connecting to a non-POE device, it provide data transmission only, and will not output power to prevent burn or damage.

Q.Will this POE Switch work with a 24v POE Devices?

A.

No, the POE Switch supports standard IEEE802.3af/at 48V POE Power. It does not support 24V Passive POE. Please contact us to get POE 48V to PoE 24V adapter.
