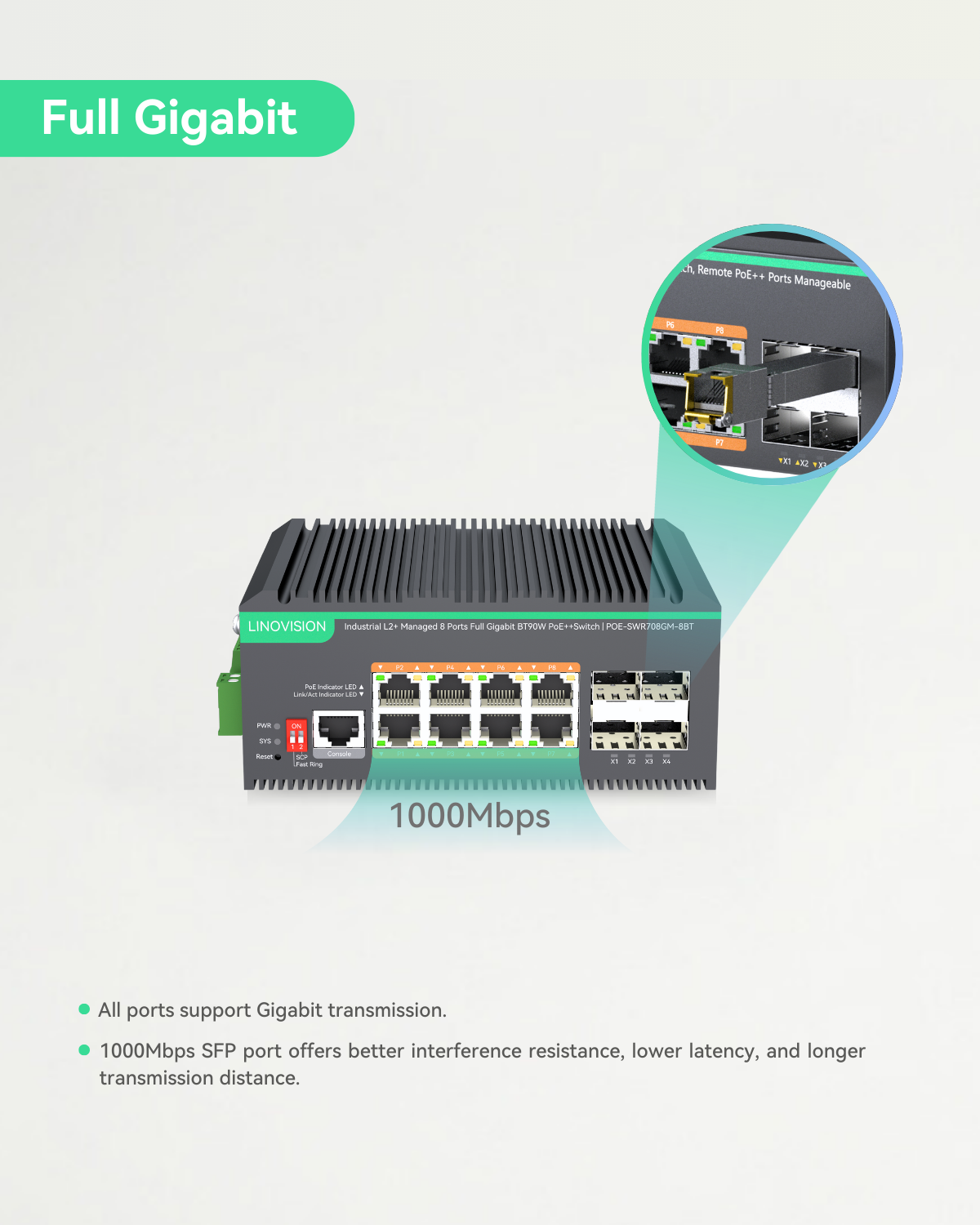

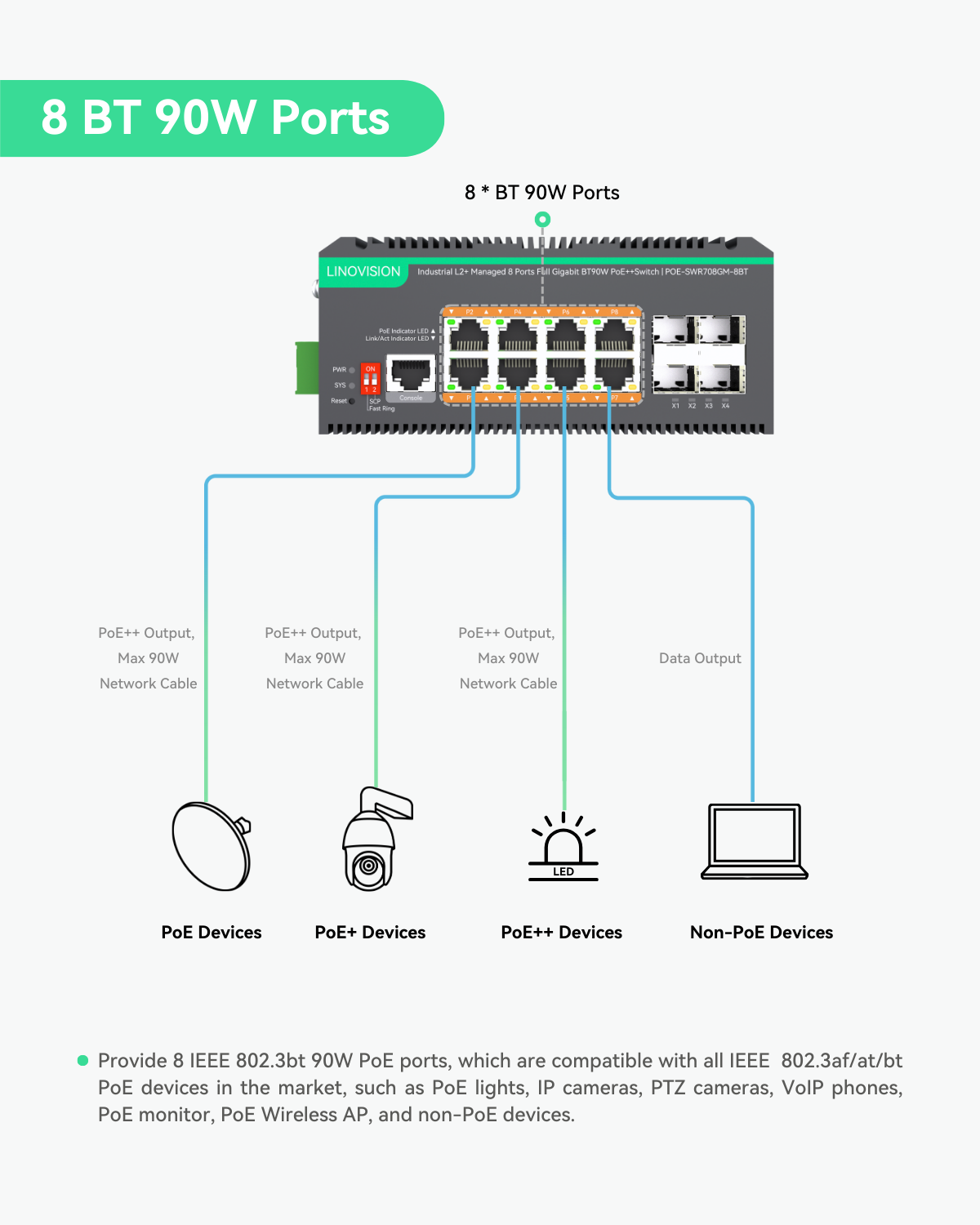

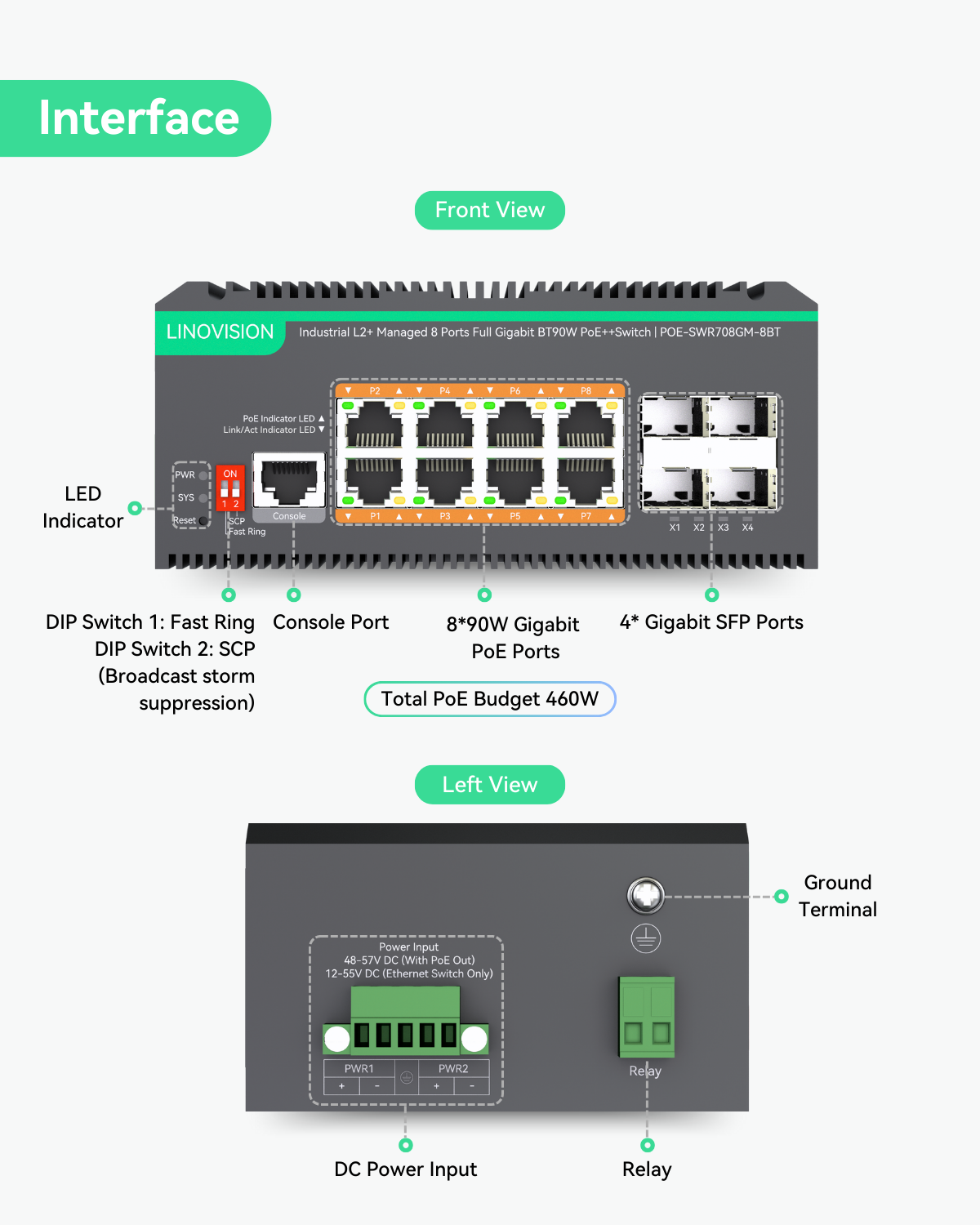

• 8 BT Full Gigabit PoE++ Switch - 8 x BT 90W output + 4 x Gigabit SFP Uplink Ports + 1 x RJ45 Console Port. Total PoE budget is 460W. Sufficient power for all IEEE 802.3af/at/bt PoE devices in the market.

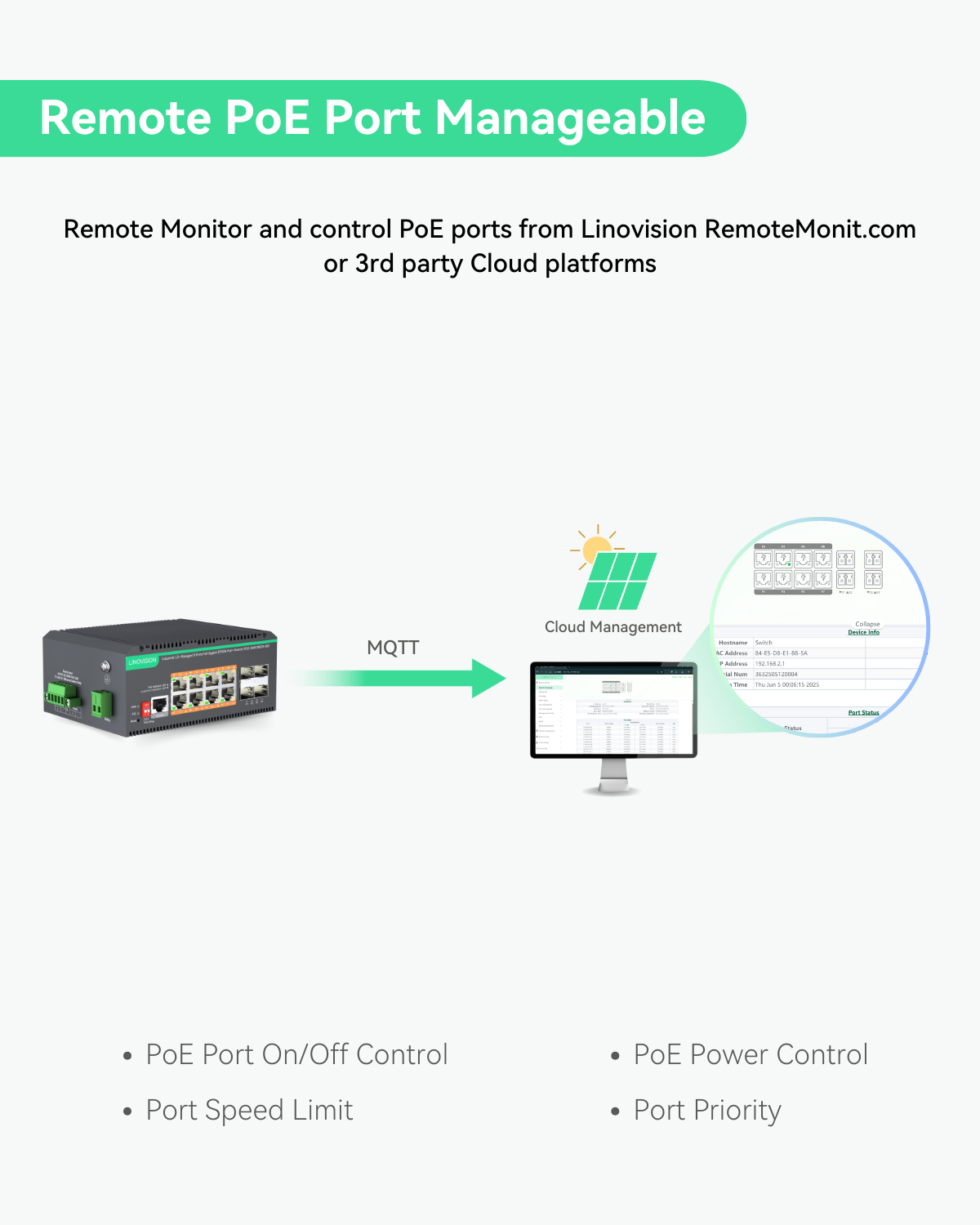

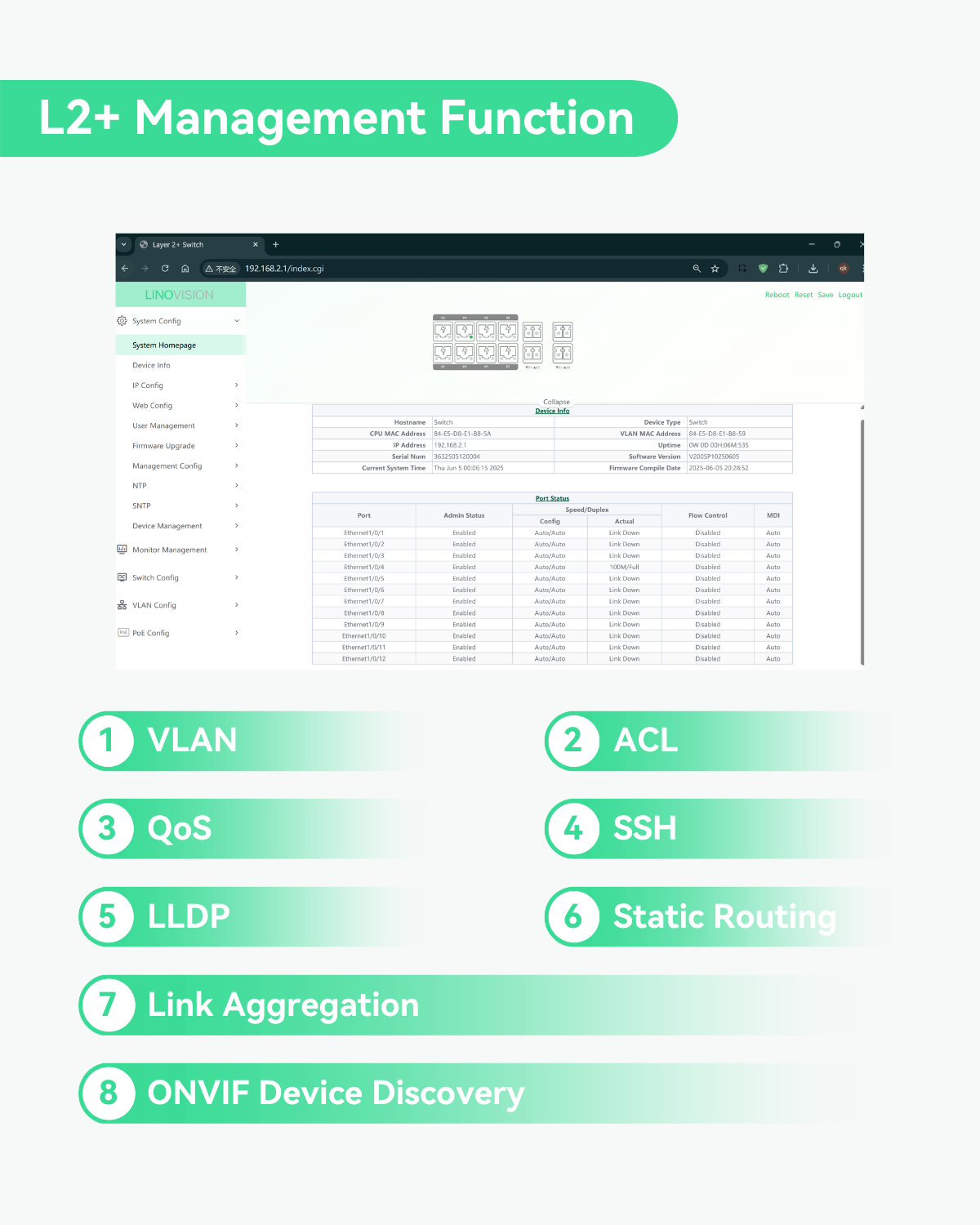

• L2+ Management and Remotely Cloud Access - Supports L2+ management functions like VLAN, QoS, ACL, Static Routing and Link Aggregation, as well as automatic ONVIF cameras discovery. Device management through WEB GUI, Telnet, SSH, CLI, SNMP, and MQTT Cloud (RemoteMonit Cloud)
• Loop Protection - Ensures high reliability with an Ethernet Ring network and increased bandwidth through Static Link Aggregation and LACP. Supports One-Key Fast Ring Fiber Network for quick deployment and SCP for Broadcast Storm Protection.
• One-Key FAST RING and SCP - Support One-Key Fast Ring Fiber Network and Broadcast Storms Protection.
• Redundant Power Supply & Surge Protection - Supports dual DC48V–57V redundant power inputs with automatic failover, 6kV surge protection, and 8kV ESD protection to ensure a highly reliable network system. Effectively protects against power interruptions caused by thunderstorms or unexpected outages.
• Relay Alarm - It can trigger alarm event on power failure, ensuring timely notifications to prevent unexpected downtime and enhance system reliability.

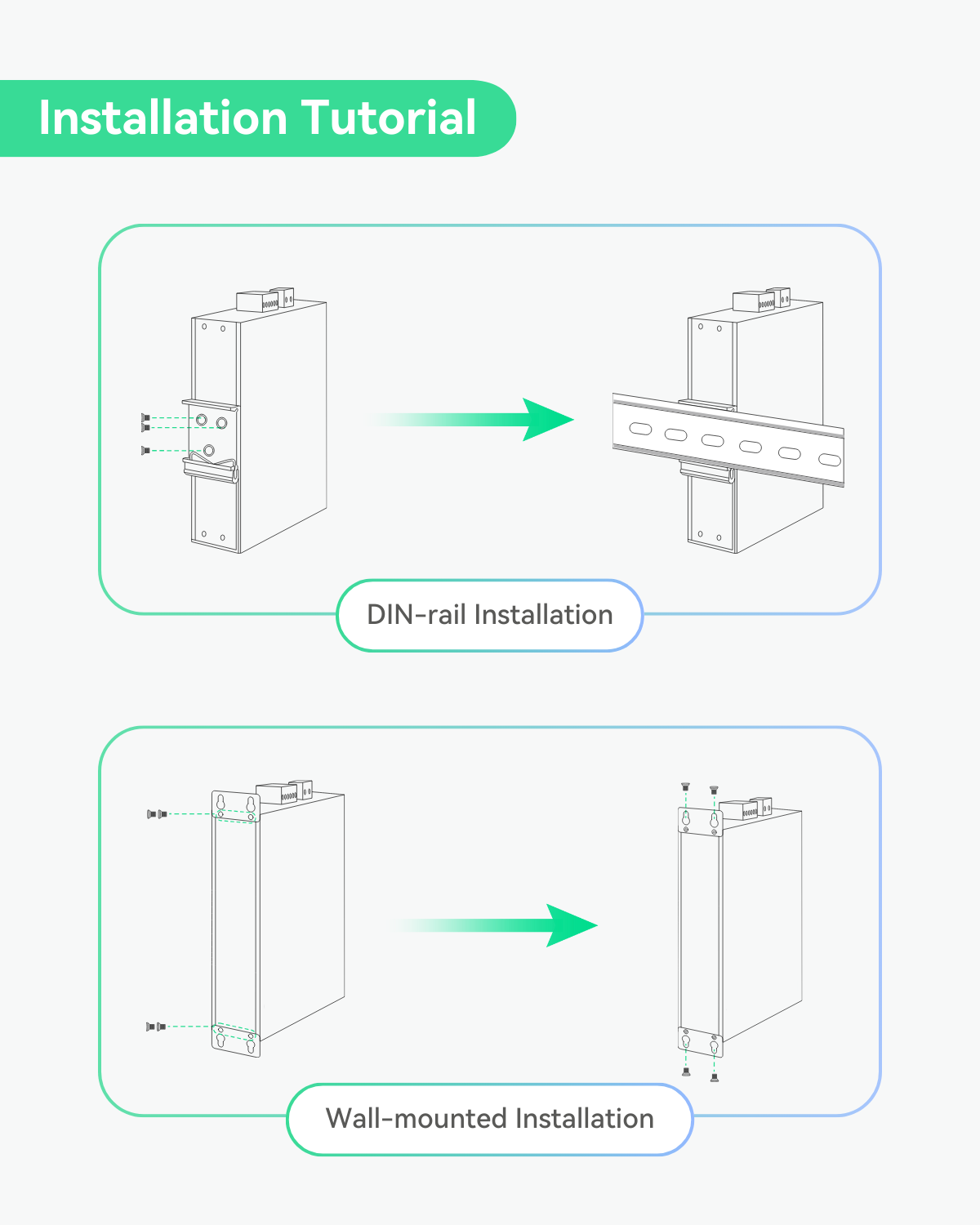

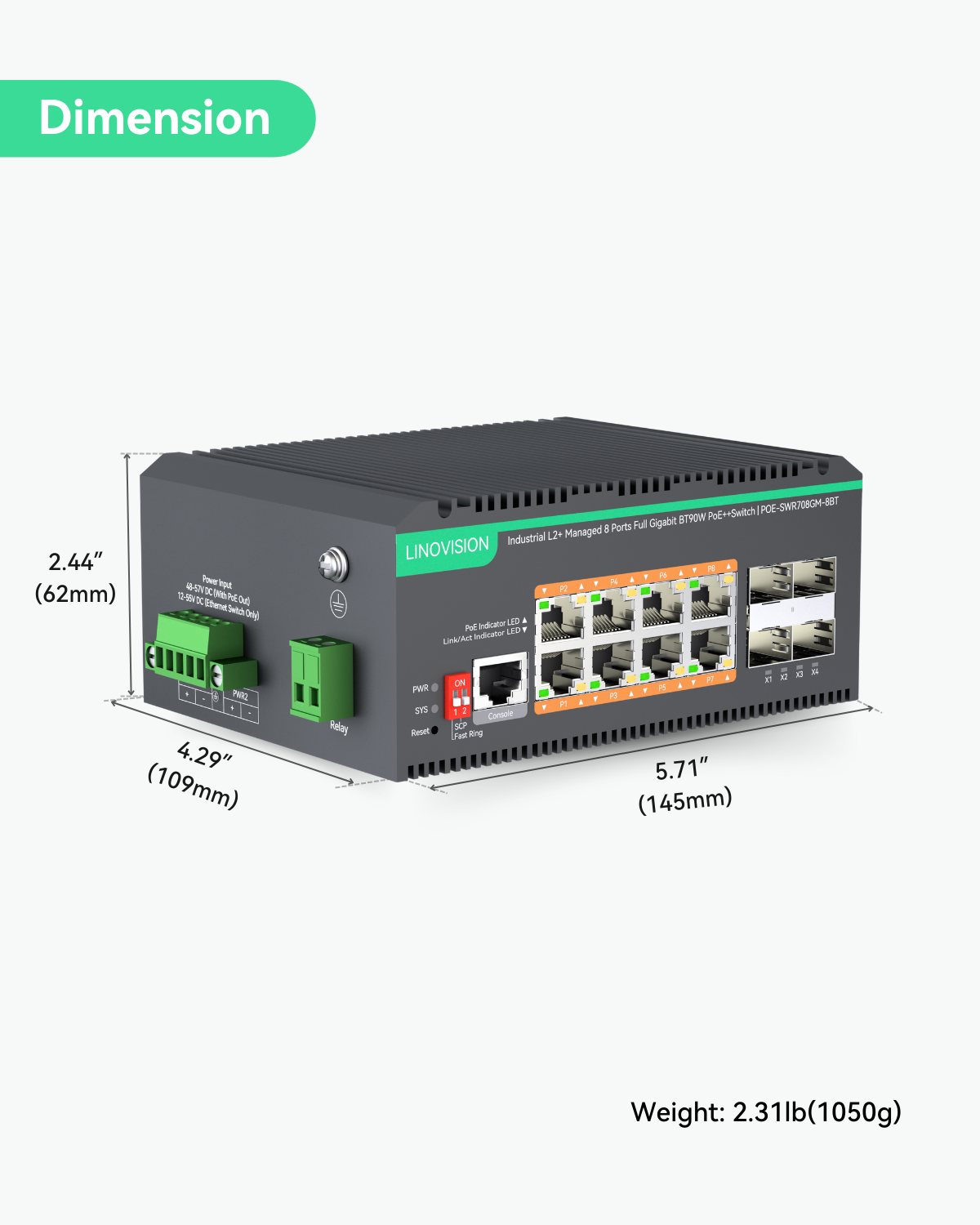

• Industrial Design - IP40 rated with aluminum housing and fanless design. Support DIN-rail or wall mounted installation. Wide working temperature -40℉ to +167℉（-40℃ to 75℃).

Application：

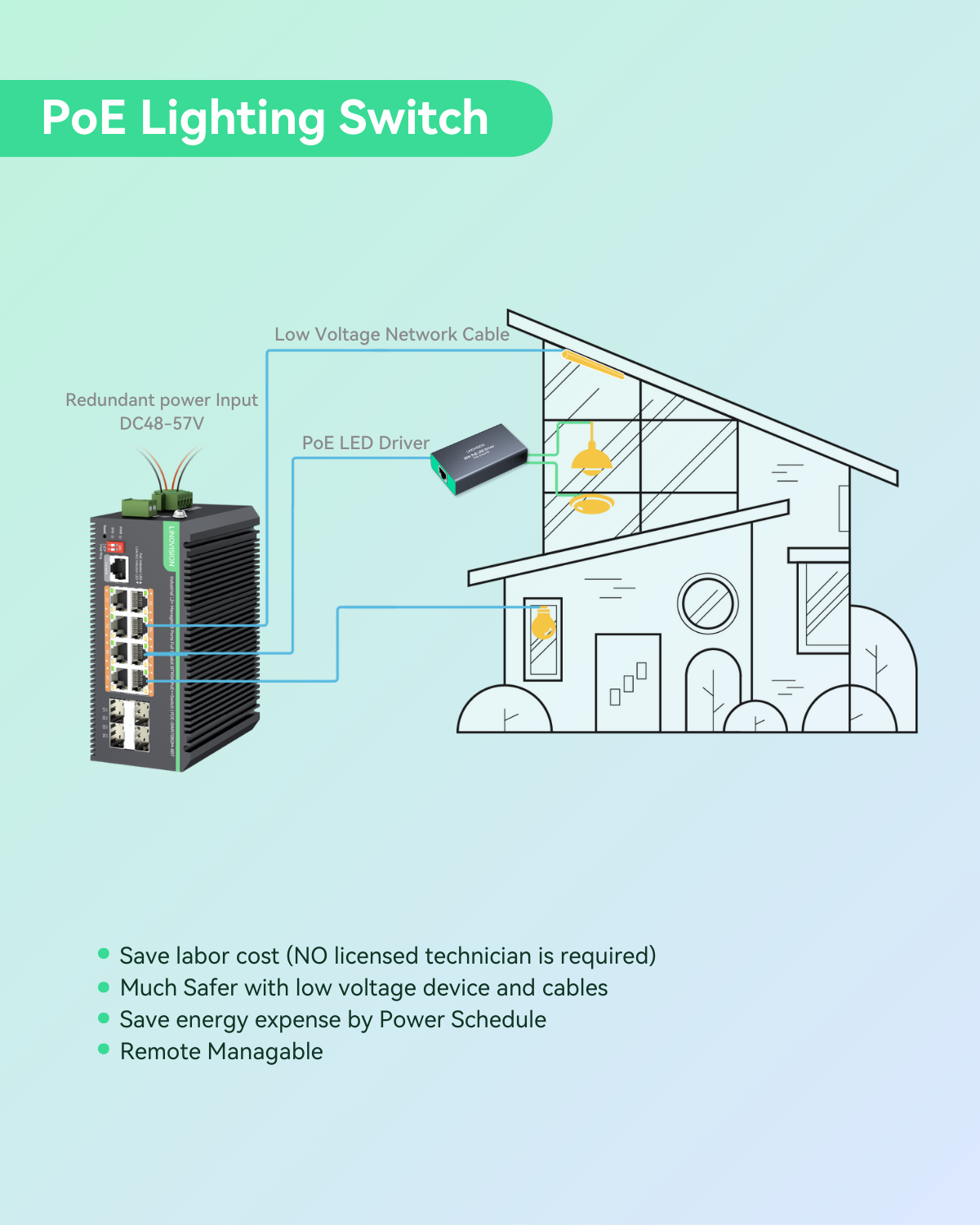

Suitable for Solar CCTV Trailer, PoE lighting, IP cameras, PTZ cameras, Wireless AP, VoIP phone, PoE monitor, etc.
