Linovision Mini Passive 2-Port PoE Extender / PoE Repeater to Transmit Data and Power over Cat5/6 Network Cable

3D Model

x

Mini 2-Port PoE Extender to Split One PoE cable for Two PoE devices

$25.00 USD
In Stock

2-PORT POE SPLITTER - Designed to supply POE power to two POE devices through one Cat5E/6 cable, and no power adapter is required. It is powered by 48V or 53V PoE Switch/POE NVR/PoE Injector/Mid-span. With this POE splitter, users can easily add extra POE device or non-POE device to existing cable without running a new network cable.
UP TO 300m POE + DATA EXTENTION - Extra 100m POE+Data transmission will be extended with one POE Extender. And it supports two levels cascade deployment, therefore total 300m POE + Data transmission is provided. (The 2nd POE Extender’s POE Input should be connected to the 1st POE Extender’s Out port, not Camera port).
COMPLIANT TO IEEE802.3AF/AT STANDARD - Works with all standard IEEE802.3af/at POE Switches/POE injectors/POE NVRs. And the POE outputs supply power to standard POE devices, like POE IP camera/IP phone/IP speaker. Noted: The CAMERA Port supports max 8W power consumption and the OUT Port supports max 15W. The max bandwidth is 100Mbps. As the distance increases, the power and the bandwidth will decrease.
EASY TO CONFIGURE IP CAMERA ON SITE - By connecting it to an existing PoE cable, installers can use laptop or CCTV Tester to easily adjust camera angle and configure IP.
PLUG-N-PLAY INSTALLATION - No configuration or setup is required. With compact dimension, enough to fit it many junction boxes or outdoor waterproof enclosures.

Application

POE passthrough switch, poe splitter, run one network cable to connect two POE or non-POE devices.
Extend the power+data transmission distance, up to 300m totally.

SKU: POE-Extender02

Datasheet Manual Video

Ship from China warehouse, normally ship out in one business day.

By default Express ship by FedEx or DHL, the typical delivery time is less than one week.

Import customs duty or tax may be charged and at customer's cost.

24/7 US LOCAL + GLOBAL TECH SUPPORT

Frequently bought with

Mini 2-Port PoE Extender to Split One PoE cable for Two PoE devices

$25.00 USD

-

+

2 Ports Outdoor PoE Extender with Universal Mount Box for Two Cameras, provide power to TWO IP cameras through ONE network cable

$69.00 USD

-

+

PoE + Ethernet over Coax (EOC) Converter

$69.99 USD

-

+

Industrial 8 Ports Full Gigabit BT 90W PoE Switch with 2 SFP Uplink

$79.00 USD

-

+

The bundle

This Item

x1

+

This item

Mini 2-Port PoE Extender to Split One PoE cable for Two PoE devices

$25.00 USD

-

+

Frequently bought with

2 Ports Outdoor PoE Extender with Universal Mount Box for Two Cameras, provide power to TWO IP cameras through ONE network cable

$69.00 USD

-

+

PoE + Ethernet over Coax (EOC) Converter

$69.99 USD

-

+

Industrial 8 Ports Full Gigabit BT 90W PoE Switch with 2 SFP Uplink

$79.00 USD

-

+

OverView Key Specification Comparison Q&A Resources Reviews

Features with passive design and unique 2 ports output, LINOVISION's POE-Extender02 can not only extend ethernet and power transmission, but also simplify cabling by running one cable to power two POE devices, such as POE IP camera, VoIP phone, door bell camera, etc.

Interface detail

The CAMERA Port: max 8W power consumption, the OUT Port: max 15W
The POE input port: POE Mode A/B, 2 output ports: POE Mode A only
Max bandwidth :100Mbps
Green LED: Indicate PoE Power Activity Status. Working status: Always on
Yellow LED: Indicate Data Link Activity Status. Working status: Flashing

Standard PoE

with hardware PoE Chipset and comfort to IEEE802.3af/at standard, it ensure highly reliable connection when working with standard PoE devices

Three main benefits of using Linovision two ports PoE Extenders:

Extend Distance
Each Linovision PoE Extender can extend another 100 meters of PoE transmission. And it supports cascade deployment. For example, it will support 400 meters of PoE transmission when using 3 levels of cascade deployment.

Extra PoE Ports
This is pretty useful when there are more than one PoE device in a location, this eliminates the expense to run another ethernet cable. More PoE ports will be available when using cascade deployment.
Plug-n-Play
There is no configuration is required and no power supply is required at the device side.

Applications

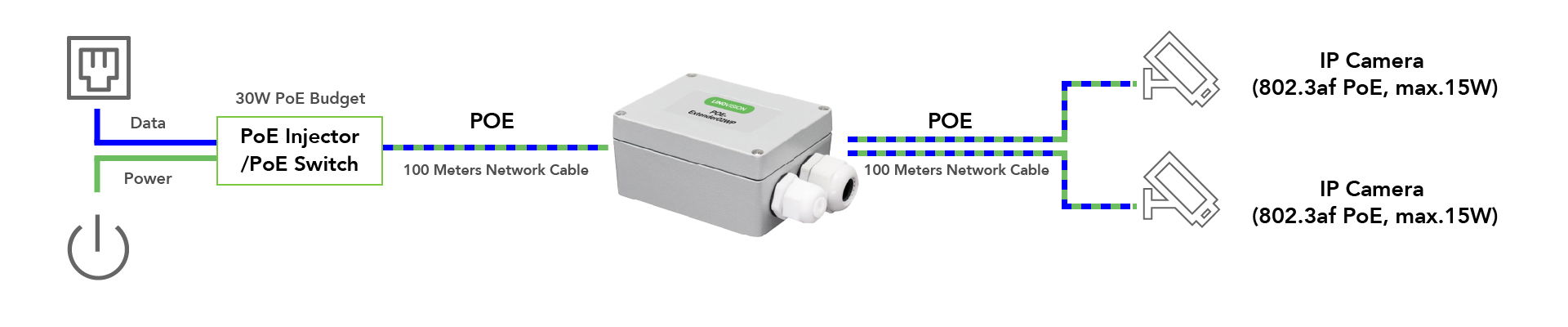

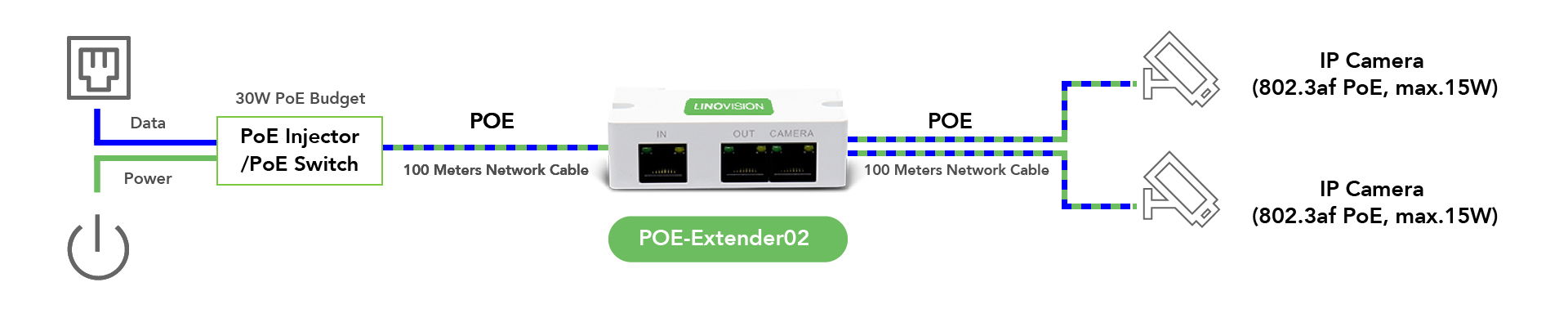

1.To two IEE802.3af PoE IP Cameras

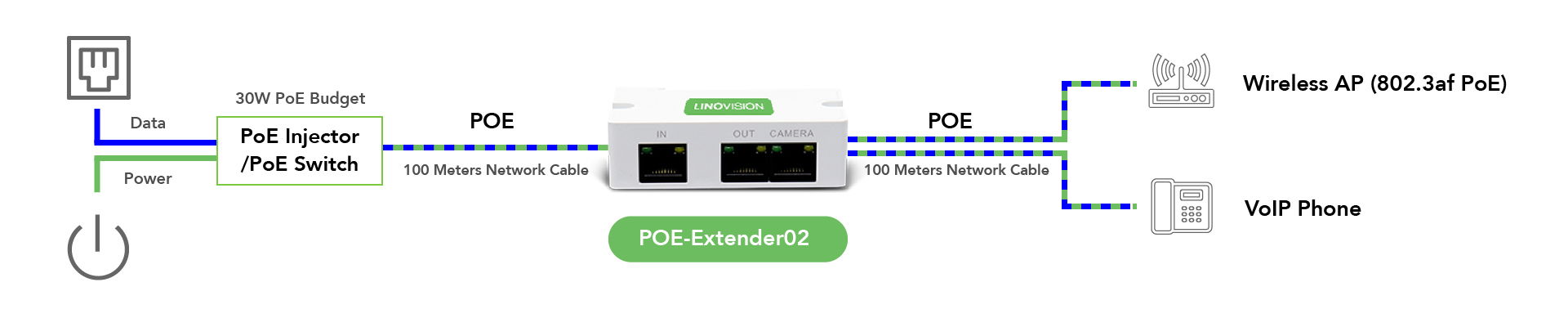

2. To Two Network Devices

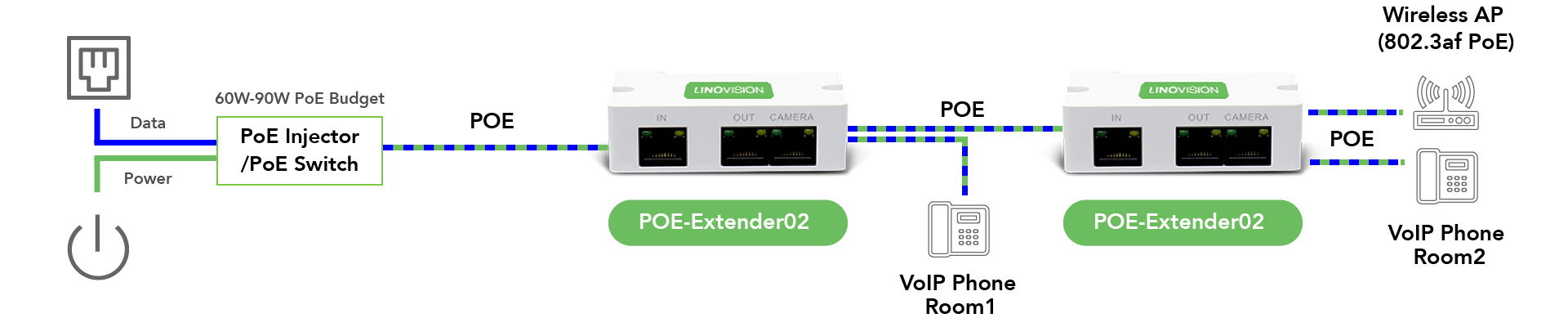

3. Cascade deployment

4. To Two PoE/ non-PoE DC12V Devices

5. Configure Camera on Site

Installation method

Key Specification

Model	POE-Extender02
Ethernet Port	110/100 Base-T PoE power receiving port 110/100 Base-T PoE power supply port, supply power for the next extender 1*10/100 Base-T PoE power supply port, supply power for IPC
Transmission Distance	Cooperate with POE-Injector60W, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, total power consumption <=25W), transmission distance is 300m
PoE Input/Output Mode	Mode A, Mode B
PoE Input/Output Line Pair	1/2/4/5: + 3/6/7/8: -
Power Consumption	<=3W
Application Humidity	10%~90%
Working Temperature	-22°F~149°F(﹣30°C~65°C)
Weight	57g(0.126lbs)
Dimension(W×D×H)	79mm×52mm×23mm(3.1'' * 2.0'' * 0.9'')

Comparison

LINOVISION PoE Extender Selection Guide

	Learn more >	Learn more >	Learn more >		Learn more >	Learn more >
Model	POE-EXT3001GP	POE-EXT3001LP(2 Pack)	POE-EXT6002GP	POE-Extender02	POE-EXT04	POE-EXT9004G
PoE Input	Max 30W	Max 30W	Max 90W	Max 30W	Max 60W	Max 90W
PoE Output	1 x 30W	1 x 30W	1 x 60W + 1 x 30W	1 x 16W + 1 x 8W	4 x 30W	4 x 90W
PoE Standard	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at/bt	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at/bt
PoE Budget	30W	30W	90W	30W	56W	75W
Extend Extra Transmission Distance	Max.1000ft (3 pack)	Max.2930ft (2 pack)	Max.330ft (1 pack)	Max.660ft (2 pack)	Max.330ft (1 pack)	Max.820ft (1 pack)
Ethernet Speed	Gigabit	10/100Mbps	Gigabit	10/100Mbps	Gigabit	10/100/1000Mbps
Waterproof	✔	✔	✔	/	/	/
Installation Method	/	/	Wall-Mount	DIN-Rail/Wall-Mount	/	DIN-Rail/Wall-Mount

Q&A

Q.Can this be used for 2 computers instead of 2 cameras? And what are the speeds of this device?

A.

Yes, this can be used for 2 computers and the maxim speed of the input port is 100M. Please be informed that the total speeds of two outputport can’t exceed the speed of the input port. And the speed will be influenced by the transmission distance, the longer distance it is, the slower speed it provides.

Q.Can this be installed outdoor？

A.

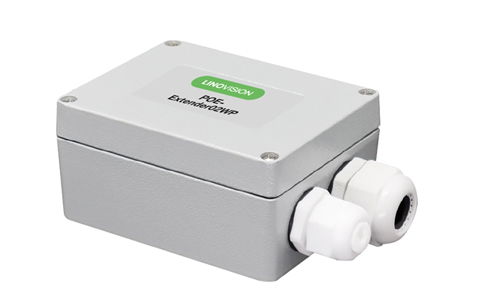

This POE Extender is not waterproof. We have 2 waterproof versions, one is the same product with a waterproof case, POE-Extender02WP.

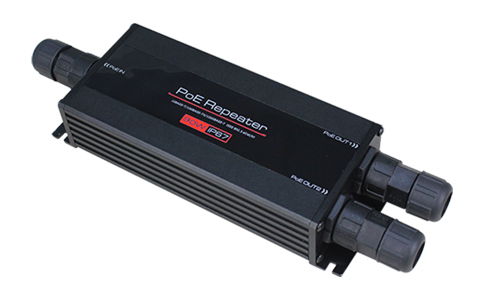

The other is the product itself with a waterproof design,POE-Extender02GP(90W).

Q.Will this work with receiving power from a non-passive poe switch? (802.3af / ieee802.3at) will this power a passive device (not 802.3af/ieee802.3a)?

A.

Yes, 'paasive' here means you don't need additional power supplier to power this product separately, but whole system need be powered. This product can work with both poe devices(as poe extender/splitter) and non-poe devices(as ethernet splitter/extender). And please be noted that each port of this product supports max 100Mbps.

Q.Will this passive splitter work with a 24v poe injector and 24v poe devices? or only with ~50 volts?

A.

This POE splitter can't work with 24V POE injector. It's recommended to use poe injector of 48-53V. And please make sure that the total power consumption of two POE output is less than the POE power input (with deduction of 3W power consumption by POE extender itself).

Q.What is the safe operating temperature range for this device?

A.

The operating temperature for this product is -30°C to 65°C (-22 °F to 149 °F).

Q.Does this extender need an addition power supply?

A.

No, it does not require local power supply. This POE extender is powered by PoE devices (48V or 53V PoE Switch/PoE NVR/PoE Injector/Mid-span). it is working well.

Q.Do I need two of these to extend cat6 for 600 feet?

A.

Yes, the POE extender supports cascade deployment, max 300m (1000ft) transmission and running one cable to support 3 IP devices, but 60W POE injector is required and IP camera power consumption should be less than 8W.

Q.What is the load capacity of POE device that connected to this POE extender?

A.

Basically, the load capability depends on the POE supply device, the total power consumption of two POE output is less than the POE power input. For example, if the POE supply unit is a 30W POE injector, then the total output power of this POE extender is less than 27W (with deduction of 3W power consumption by POE extender itself), the longer the transmission distance, the lower power output from POE extender. We recommend to use 60W High POE injector to connect to this POE extender.

Q.I'm looking to upgrade my existing analog cctv system to poe and I'm interested in buying an EOC switch, multiple transmitters, and other accessories.Would it be possible to plug in a POE-Extender 02 downstream of an EOC transmitter? So that I could have 2 poe cameras on a single coax? Assuming both cameras are under the wattage limit.

A.

Please note that the EOC transmitter can indeed be used with the POE-Extender 02. This setup would allow you to connect two PoE cameras over a single coaxial cable, provided that the combined power consumption of both cameras stays within the wattage limit. For your reference, here aresome details on coax cable length and bandwidthfor the EOC system.

Q.I have a POE supply inside a building, that powers a POE device outside the building. We want to add a PC at the midpoint to the ethernet cable, to monitor the behavior of the outside POE device. Will your 2 port ethernet extender work for this? If not, what should we use?

A.

Please confirm both the POE injector and the POE PD device uses 802.3AF/AT. If that is the case, you should be able to use POE-Extender02 and add a PC in the middle.
Please let me know the model number for the injector and the POE device if you are not sure.

Powering 2 PoE Cameras

Works perfectly as advertised. I added a second camera to a long run, the PTZ camera on the POE port and the new camera on the CAMERA port. 25W total, it gets a little warm but not bad.

Product Works

Tried other similar version this is the most stable to its competitors!

Great plug and play device

Works great with powering a poe camera and continuing the run using poe power only (my switch also pushes poe + if able, haven't looked into if it's utilizing that because it works)

Reliable

Have been using these devices for a few months now. My team of technicians use the splitters both as a tool for aiming POE IP cameras or as a quick expendable to get another camera going from the same cable saving on labor. So far the devices have been robust and reliable.

Exactly what I needed!

I used these to expand the PoE+ ports from my unifi 150W PoE+ switch and add a few extra unifi cameras to the setup. These work great, I will be buying more.
