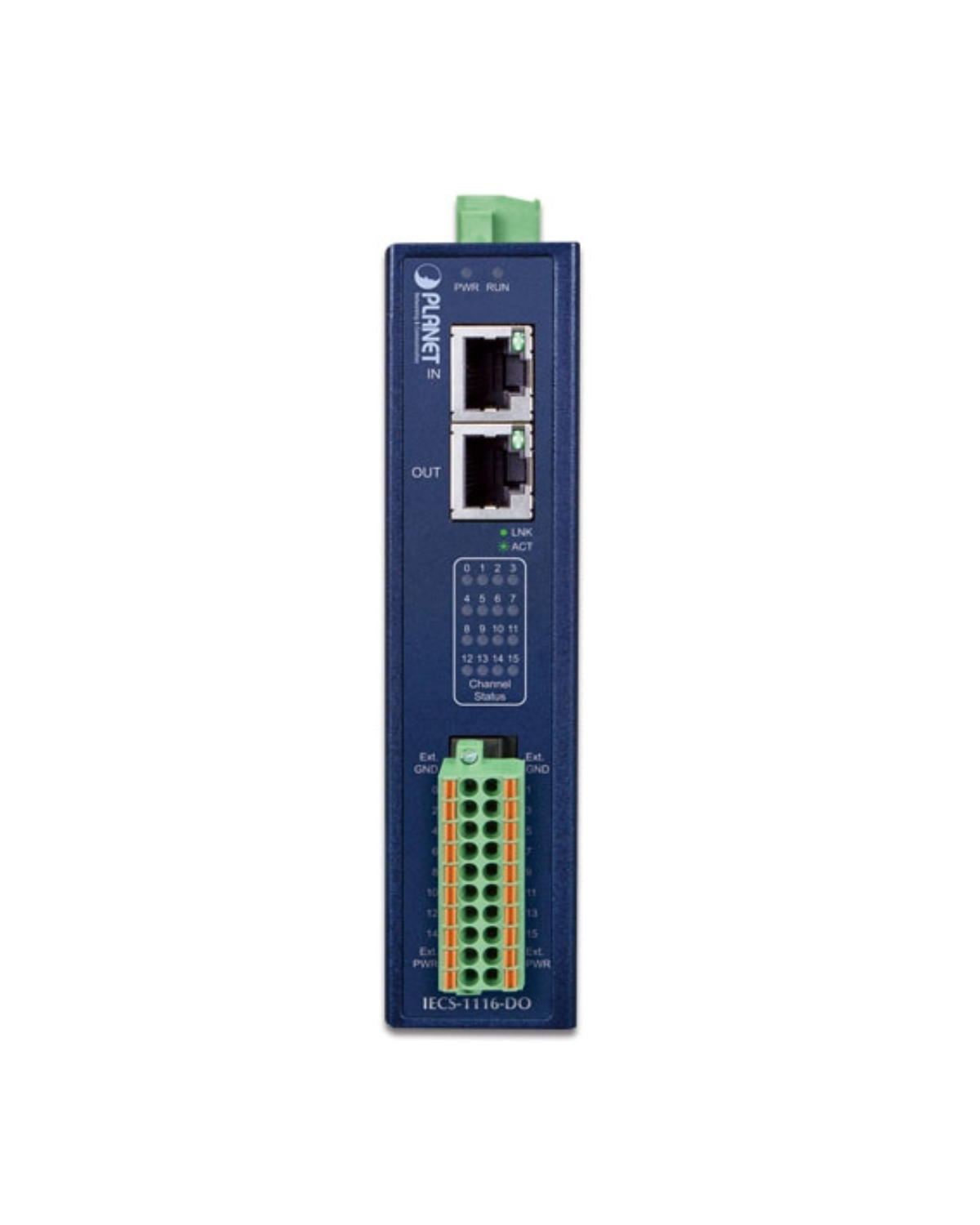

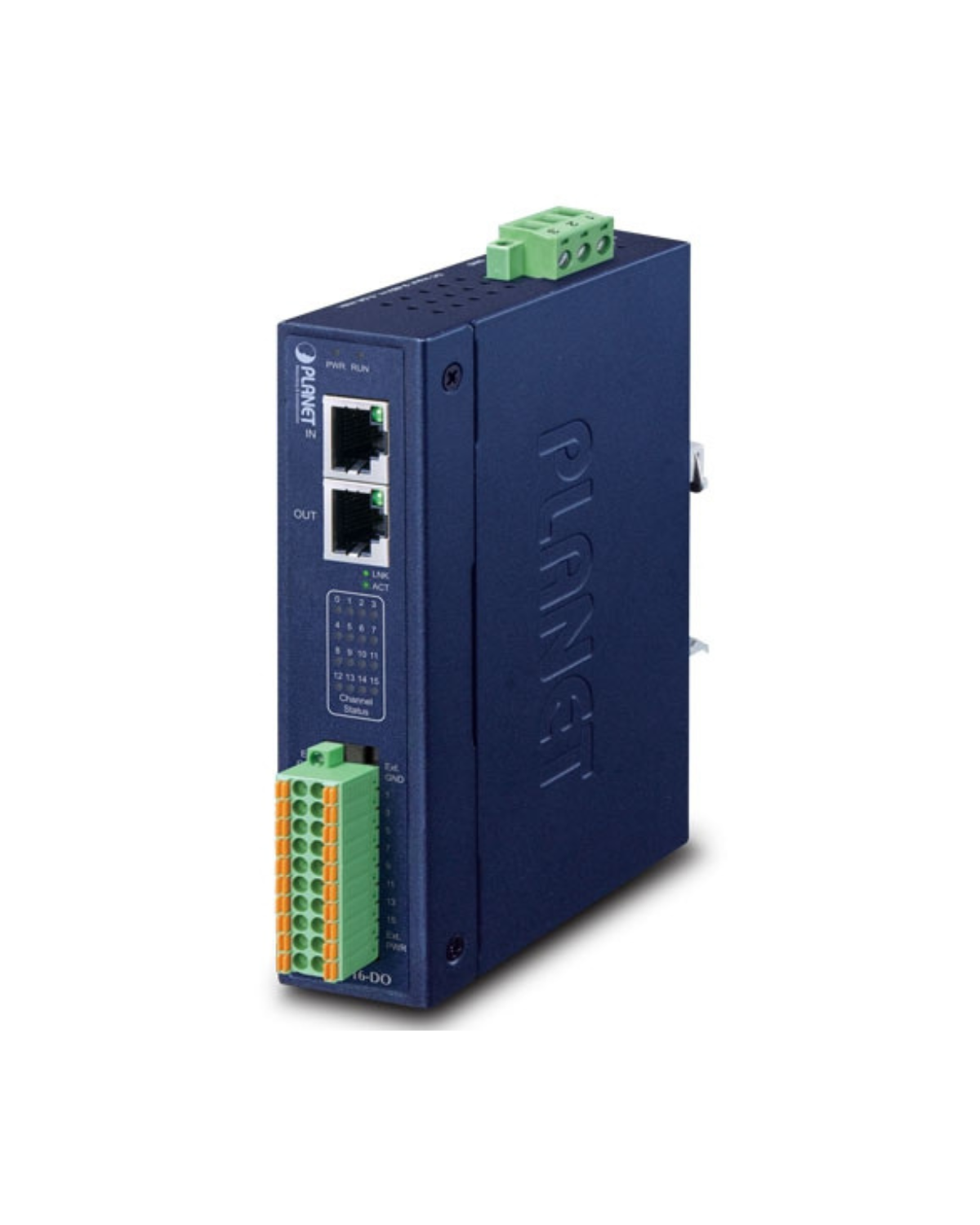

PLANET IECS-1116-DO Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Output

$340.00 USD
In Stock Request Volume Pricing

x

Request for Volume Pricing Form

Name

This field is required.

E-Mail

This field is required.

Company

This field is required.

Phone

This field is required.

Quantity

Please enter an integer greater than 0.

Your target price

This field is required.

Notes

This field is required.

SKU: IECS-1116-DO

Thank you for inquiring. Our sales team will be in touch with you shortly!

Submission failed. Please try again.

The IECS-1116-DO is an industrial EtherCAT slave I/O module equipped with the EtherCAT protocol for today’s distributed industrial applications.

Channels: 16
Output Type: Open collector (sink)
Connector: 2 x RJ45
Distance: 100m (100Base-TX)
Input Voltage: 9~48V DC
Power Consumption: 4W max.
Operating Temperature: -40° to 75°C
TAA Compliant

Note: ALL Industrial Switches do NOT include a power supply. Click here to shop all Industrial Power Supply.

SKU: IECS-1116-DO

Datasheet Manual

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

Frequently bought with

PLANET IECS-1116-DO Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Output

$340.00 USD

-

+

The bundle

This Item

x1

+

This item

PLANET IECS-1116-DO Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Output

$340.00 USD

-

+

Frequently bought with

Overview Key Specification Resources Reviews

Industrial EtherCAT Slave

Powering the Digital Transformation with EtherCAT

PLANET IECS-1116-DO is an industrial EtherCAT slave I/O module equipped with the EtherCAT protocol for today's distributed industrial applications. The IECS-1116-DO provides high-density digital output channels and is protected with 3750 VDC isolation. Its compact size and DIN-rail mounting make installation in a cabinet easy. Pluggable terminal blocks and LED indicator help users to maintain and set up their system.

Flexible Installation

The IECS-1116-DO is an ideal high-speed distributed system solution which provides quick installation, real-time connection status monitoring, and wide-ranging power input and operating temperature to improve work efficiency, making them suitable for the harsh environment. Besides, the module comes with 2 10/100BASE-TX RJ45 ports. Through the EtherCAT technology, a network of up to 65,535 devices can be supported without the limitation of the type of topology -- line, bus, tree, star or any arrangement -- being used.

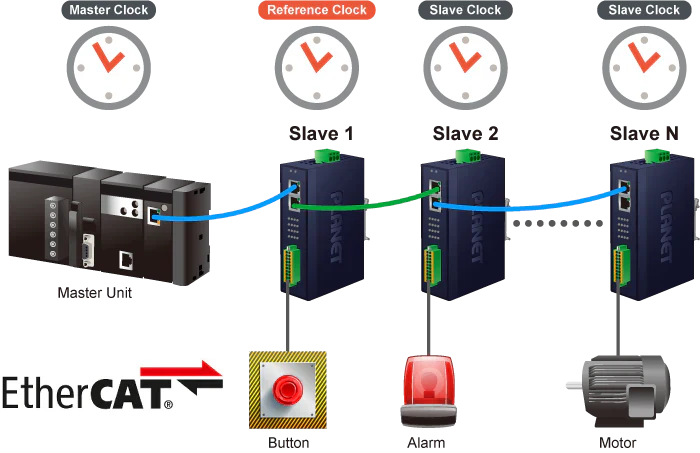

Synchronization

An EtherCAT slave is an electronic device that carries out cyclical sequences of calculations and/or data copying tasks at a certain interval (cycle). The EtherCAT slave working cycle (e.g. in the range of a few µs up to several ms) can be derived from different sources. EtherCAT node can measure time difference between leaving and returning frame. With distributed clocks, EtherCAT can realize a precise synchronization time of <1us between each slave module.

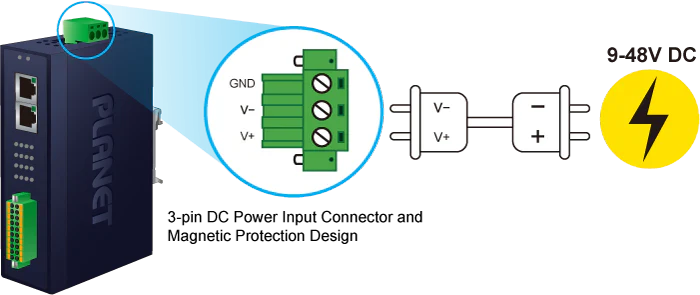

Convenient and Reliable Power System

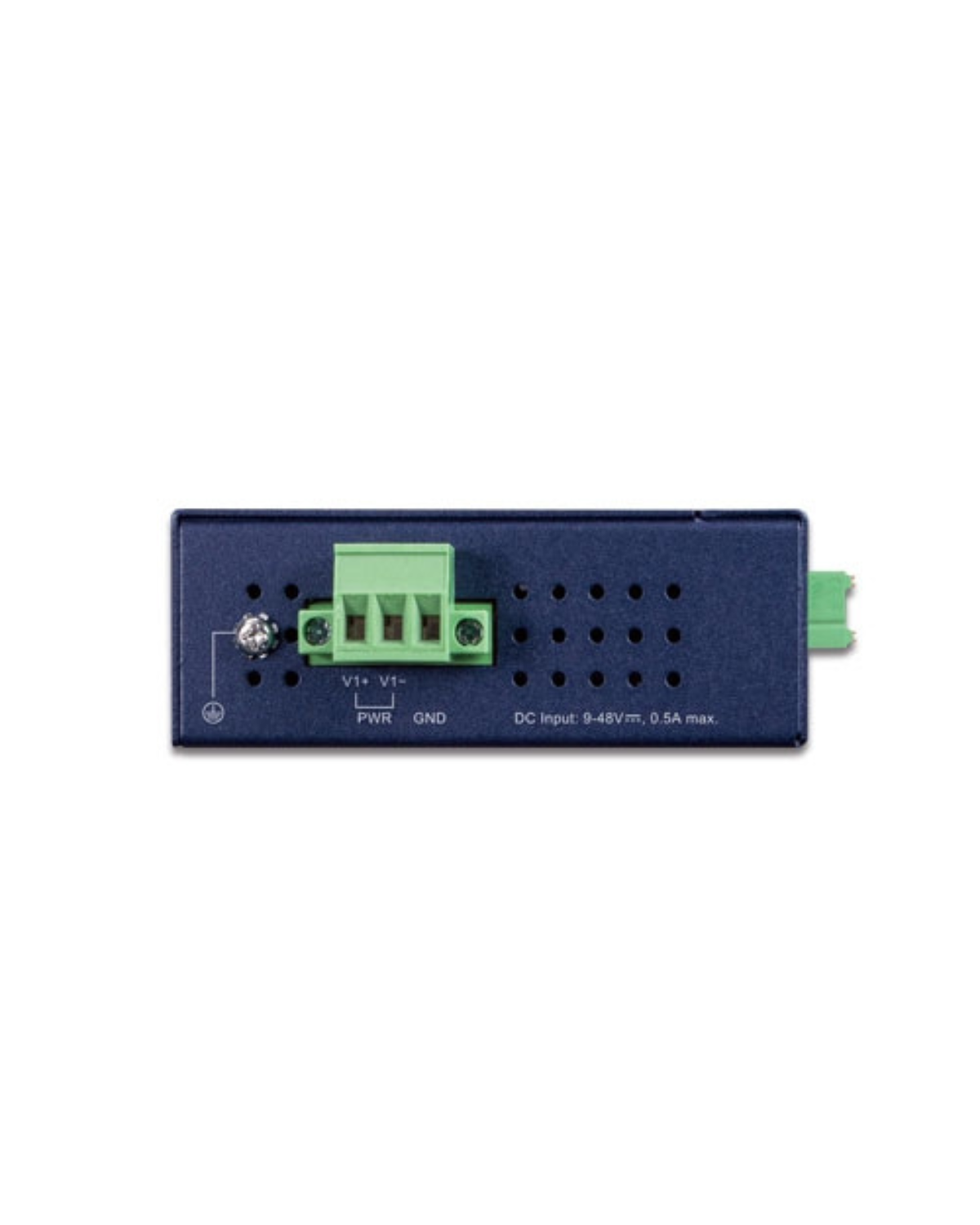

The IECS-1116-DO is equipped with one 3-pin DC power input connector with screws for power supply installation. With power magnetic protection design, it can avoid the device burnout due to wrong wiring. In addition, it also possesses an integrated power supply source with wide-ranging voltages (9 to 48V DC) for worldwide high availability applications.

Environmentally Hardened Design

With the IP40 metal industrial case, the IECS-1116-DO provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IECS-1116-DO can be placed in almost any difficult environment.

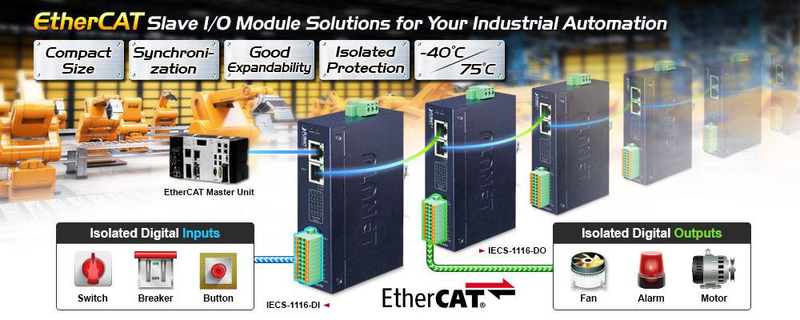

Industrial-grade EtherCAT Slave Module for Factory Automation

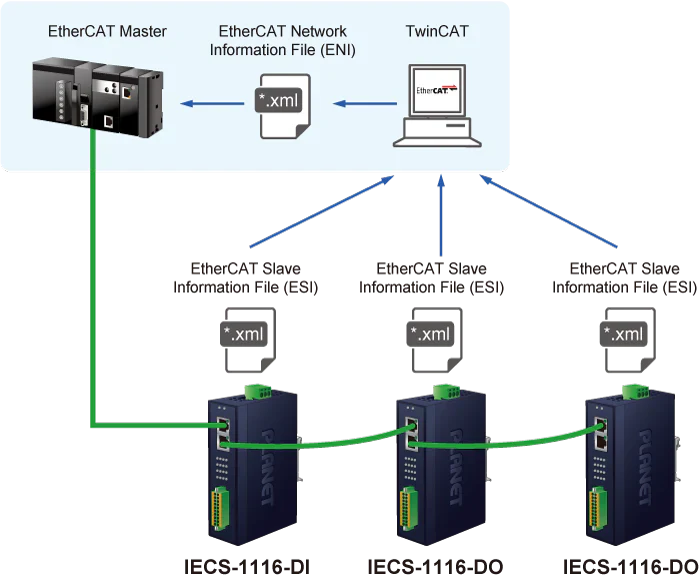

The IECS-1116-DO is an EtherCAT slave I/O module with isolated16-ch output for distributed industrial applications. Each module is equipped with high density I/O (up to 16 points) and powerful features in a compact size. DIN-rail design and daisy-chain wiring powered by EtherCAT technology make it easy to install the modules in the field. Besides, the IECS-1116-DO is able to provide a wide variety of I/O combinations with the IECS-1116-DI. With the standard ESI file, users can always find suitable I/O modules for their high-speed EtherCAT-based applications.

Key Specification

Model	IECS-1116-DO
Digital Output
Channels	16
Output Type	Open collector (sink)
Load Voltage	+3.5 V ~ +50 V
Max. Load Current	700 mA per channel
Photo Isolation	3750 VDC
Communication Interface
Connector	2 x RJ45
Protocol	EtherCAT
Distance between Stations	Max. 100m (100BASE-TX)
Data Transfer Medium	Ethernet/EtherCAT cable (min. cat5), shielded
Power
Input Voltage Range	9V~48V DC
Power Consumption	4W max.
Mechanical
Dimensions (H x W x D)	135 x 87 x 32mm
Installation	DIN-rail mounting
Case Material	IP30 metal
Environment
Operating Temperature	-40~75°C
Storage Temperature	-40~75°C
Relative Humidity	5~95% (non-condensing)
